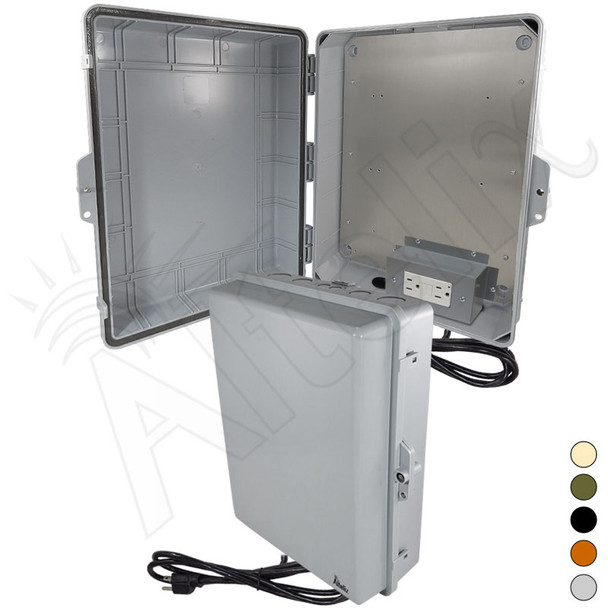

Altelix 17x14x6 Polycarbonate + ABS Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC GFCI Outlets & Power Cord
- Usually Ships in 1 to 2 Business Days
For customization and volume pricing inquiries please Click Here to email us at email@example.com
|Features ||Applications |
The Altelix NP171406A1C-GFI NEMA Weatherproof Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure is IP55 rated and features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.
PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC GFCI power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. The enclosure can also be hard wired by an electrician or qualified installer. An external ground lug is provided. Two cable grommets on the enclosure allows cables to be connected to internal devices. Knock-outs are provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.
120VAC GFCI Protected Outlet
The NP141105A1C-GFI features a Ground Fault Circuit Interrupter (GFCI) outlet. Like a circuit breaker, this outlet shuts off electric power when it senses an imbalance between the outgoing and incoming current. They are ideal in locations where water may be present since they provide an extra level of protection from electrical shock. Test and reset buttons are provided on the outlet.
Aluminum Equipment Mounting Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
|Material||PC+ABS Polycarbonate / ABS Blend|
|Available Colors||Gray, Black, Light Ivory, OD Green|
|Max Load||10A @ 120VAC|
|Outer Dimensions |
(Height x Width x Depth)
|16.5 x 13.7 x 5.3 Inches |
(420 x 348 x 133 mm)
|Inner Dimensions* |
(Height x Width x Depth)
|11.5 x 9.0 x 4.0 Inches |
(292 x 229 x 102 mm)
|Mounting Plate Material||0.08 in (2.0 mm) Aluminum|
|Mounting Plate Dimensions||14.9 x 11.2 in. (378 x 284 mm)|
|Weight||5.8 lbs. (2.6 kg)|
|Power Cord Length||5 Feet (1.5m)|
|Ratings||NEMA Type 3, 3X / IP55|
|Flame Rating||Meets UL94-V0|
|Knockout Sizes (Diameter)||(4) 0.62 in. (16 mm) |
(4) 1.02 in. (26 mm)
(4) 1.30 in. (33 mm)
1) Interior dimensions represent maximum space available for equipment.
NEMA Ratings and IP Equivalency Chart
Need a pole mount kit, an extra set of enclosure keys or something else? Click on ADD TO CART below to see all the available accessories for this enclosure.
