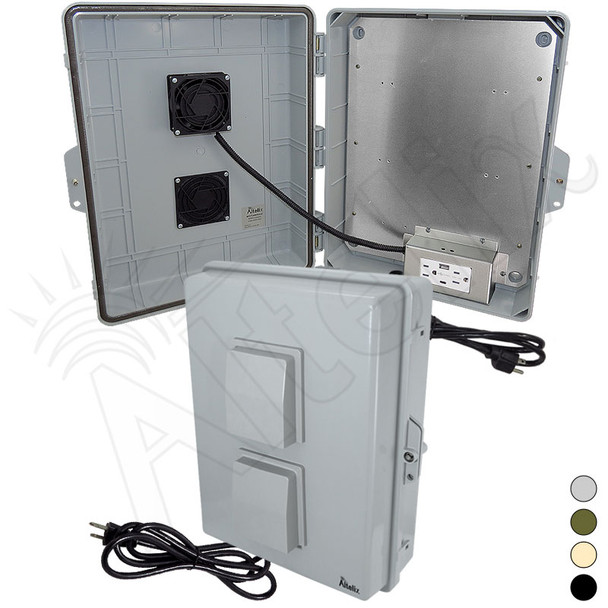

Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC Outlets, (2) USB Ports & Power Cord

SKU:
NP171406BVFA1C-2SA
Availability:
Usually Ships in 1 to 2 Business Days
  • Altelix 17x14x6 Polycarbonate + ABS Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets, (2) USB Ports and Power Cord
  • Available Colors
  • Altelix 17x14x6 Polycarbonate + ABS Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets, (2) USB Ports and Power Cord
  • USB Ports
  • Altelix 17x14x6 Polycarbonate + ABS Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets, (2) USB Ports and Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets, (2) USB Ports and Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets, (2) USB Ports and Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets, (2) USB Ports and Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets, (2) USB Ports and Power Cord
  • Accessory Kit
  • Scale Reference
Your Price: $335.99

Get simple modifications in only 3-5 days! Click to learn more.

For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Dual 3" Vents and Thermostat Controlled Cooling Fan
  • ABS + Polycarbonate Enclosure
  • Available in Gray, Black, Light Ivory and OD Green
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • Includes Aluminum Mounting Plate with Pre-Wired 120VAC Outlets
  • Pre-wired 5 foot Power Cord
  • Updated! Power Outlet Features USB-A and USB-C Charging Ports
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Wall Mount Hardware and Cable Grommets
Applications
  • Indoor / Outdoor WiFi Equipment
  • Power and Charging of USB Devices
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Concealment of Electronic Equipment



The Altelix NP171406VFA1C-2SA Vented Fan Cooled Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power, USB Ports and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Cooling Fan Ventilation
The NP171406VFA1C-2SA features dual 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure. Dual fans are also available by request.

Power
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. The enclosure can also be hard wired by an electrician or qualified installer. An external ground lug is provided. Two cable grommets on the enclosure allows cables to be connected to internal devices. Knock-outs are provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.

USB Ports
The NP171406VFA1C-2SA includes a Type-A and Type-C USB charging ports. These 5VDC 3.6A USB ports are integrated into the 120VAC outlet, so no additional room in the enclosure is required. Note: these ports are used to power/charge electronic devices only, no data transfer capability.

Aluminum Equipment Mounting Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material PC+ABS Polycarbonate / ABS Blend
Available Colors Gray, Black, Light Ivory, OD Green
Voltage 120VAC
USB Ports (1) USB Type-A & (1) USB Type-C
Total USB Output: 5VDC, 3.6A
Max Load 10A @ 120VAC
Cooling Fan Turn-On Temperature 100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature 79°F (26°C) ±9°F
Outer Dimensions 16.5 x 13.7 x 6.7 Inches
(420 x 348 x 167 mm)
Inner Dimensions* 11.5 x 9.0 x 3.2 Inches
(292 x 229 x 81 mm)
Mounting Plate Material 0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions 14.9 x 11.2 in. (378 x 285 mm)
Weight 7.1 lbs. (3.2 kg)
Power Cord Length 5 Feet (1.5m)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 1.02 in. (26 mm)
(4) 1.30 in. (33 mm)
*Interior dimensions represent space available for equipment. See drawing for additional details.




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.



Need a pole mount kit, an extra set of enclosure keys or something else? Click on ADD TO CART below to see all the available accessories for this enclosure.
