New and Improved!
Altelix is excited to offer the newly redesigned NP120907 series enclosures. Some of the new features include:
- Dual stainless steel latches
- Multiple mounting options - (4) external mounting feet and internal mounting points
- Deeper enclosure base
- Increased number of multiple sized knock-out holes provided on bottom of enclosure
- Now with (2) 120VAC power outlets

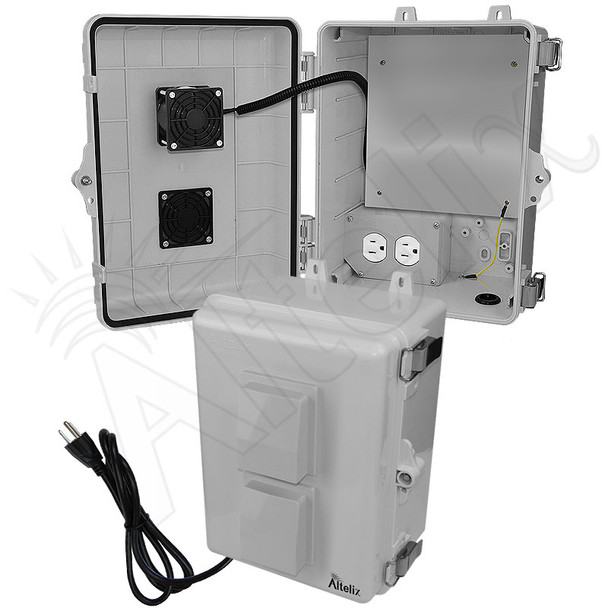

The Altelix NP120907VPFA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.
Cooling Fan Ventilation
The NP120907VPFA1C features dual vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.
Aluminum Equipment Mounting Plate
Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.
Note: this enclosure is also available with a non-metallic PVC equipment mounting plate (see NP120907VMA1C) and without an equipment mounting plate (see NP120907VFA1C).
Secure Your Equipment
These NP series enclosures feature a gasketed lid with dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.
Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.
Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
Technical Specifications
| Material | PC+ABS Polycarbonate / ABS Blend |
| Color | Gray |
| Voltage | 120VAC |
| Max Load | 10A @ 120VAC |
| Cooling Fan Turn-On Temperature | 100°F (38°C) ±6°F |
| Cooling Fan Turn-Off Temperature | 79°F (26°C) ±9°F |
| Outer Dimensions (Height x Width x Depth) |
13.0 x 10.2 x 8.2 Inches (332 x 259 x 208 mm) |
| Inner Dimensions* (Height x Width x Depth) |
7.8 x 7.1 x 4.4 inches (198 x 180 x 111 mm) |
| Mounting Plate Material | 0.06 in. (1.5 mm) Aluminum |
| Mounting Plate Dimensions | 7.7 x 7.3 in. (196 x 186 mm) |
| Weight | 5.8 lbs. (2.7 kg) |
| Power Cord Length | 5 Feet (1.5m) |
| Ratings | NEMA Type 3R, 3RX / IP24 |
| Flame Rating | Meets UL94-V0 |
| Industry Certifications | CE |
| Knockout Sizes (Diameter) | (3) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm) |
| *Interior dimensions represent maximum space available for equipment. |
 |
NEMA Ratings and IP Equivalency Chart |
