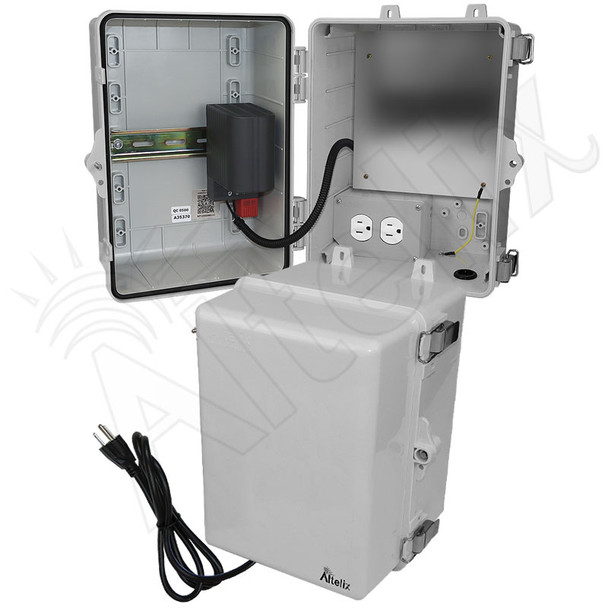

Altelix 12x9x9 Polycarbonate + ABS NEMA 4X Heated Enclosure with 50W Heater, Aluminum Equipment Mounting Plate, 120 VAC Outlets & Power Cord

The Altelix NP120909PHA1C NEMA 4X heated enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be removed and the power receptacle can be hard-wired by a qualified installer.

50W Thermostat Controlled Heater
This enclosure is equipped for harsh weather and cold environments. It features a DIN rail mounted thermostat controlled 50W heater. This heater generates a high air-current of warm air due to the design which supports natural convection. The internal design of this heater helps reduce the surface temperatures on the accessible sides of the housing. The heater turns on when the internal temperature reaches 41°F (5°C) and turns off when it rises to 59°F (15°C). The heater is mounted to a DIN rail in the enclosure leaving the equipment mounting plage available for installed equipment. It is wired internally leaving the power outlets available for your equipment.

Increased Interior Space
This enclosure features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP120909PHA1C can accommodate a wide range of equipment.

Aluminum Equipment Mounting Plate
Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.

Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material	PC+ABS Polycarbonate / ABS Blend
Color	Gray
Voltage	120VAC
Max Load	10A @ 120VAC
Heater Turn-On Temperature	41°F (5°C) ±9°F
Heater Turn-Off Temperature	59°F (15°C) ±9°F
Heater Power	50 Watts
Outer Dimensions (Height x Width x Depth)	13.0 x 10.2 x 8.9 Inches (332 x 259 x 226 mm)
Inner Dimensions* (Height x Width x Depth)	7.8 x 7.1 x 7.6 inches (198 x 180 x 193 mm)
Mounting Plate Material	0.06 in. (1.5 mm) Aluminum
Mounting Plate Dimensions	7.7 x 7.3 in. (196 x 186 mm)
Weight	5.7 lbs. (2.6 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
Flame Rating	Meets UL94-V0
Industry Certifications	CE
Knockout Sizes (Diameter)	(3) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm)

*Interior dimensions represent maximum space available for equipment.
