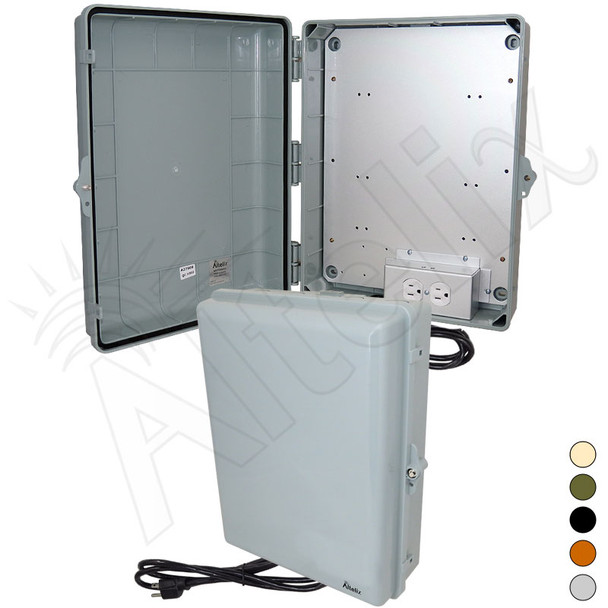

Altelix 17x14x6 PC + ABS Weatherproof Power Box NEMA Enclosure with 120V Power Outlets

SKU:
NP171406A1C
Availability:
Same Day Shipping
  • Altelix 17x14x6 Polycarbonate + ABS Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord
  • Accessory Kit Included with Enclosure
Your Price: $119.99
  • Pole Mount Kit for NP171406 NEMA Enclosures
  • Altelix Pole Mount Kit for NP171406 NEMA Enclosures
  • Key for NP Series Enclosures
  • 35mm Top Hat DIN Rail Kit for NF141206, NF141208 & NP171406 Series Enclosures
For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • No Electrical Wiring Required
  • Pre-wired 5 foot 3-Prong Power Cord
  • (2) Pre-Wired 120VAC Outlets
  • Aluminum Equipment Mounting Plate
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS
  • RF Transparent for Wireless Devices
  • Gasketed Lid with Dual Latches
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • Includes Wall Mounting Hardware, Cable Grommets, Zip Ties, Cable Management Loop, Ground Wire
  • External Dimensions: 16.5 x 12.5 x 5.3 Inches (420 x 320 x 133 mm)
  • Available Space for Equipment Up to 11.5" x 9" x 4.5" Max.
  • Knock-Out Holes on Top & Bottom
  • Optional Equipment Mounting Plates and Pole Mount Kits Available
  • Proudly Made Here in the USA with Global Materials
Applications
  • Multi Purpose AC Power Box
  • Home Automation
  • WiFi and RFID Gear
  • Security and Surveillance Systems
  • LED Controllers
  • IoT Devices
  • Network Switches
  • PoE Power Injectors
  • Media Converters
  • Cable TV Aand CCTV Amplifiers
  • Broadband Equipment
  • SCADA Remote Terminal
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment

Plug and Play Power for Easy Installation

The Altelix NP171406A1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features two pre-wired 120VAC power outlets for your equipment.

Get your project up and running quickly
and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.

Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. Meets or exceeds NEMA Type 3, 3X and IEC IP55.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains wall anchors, zip ties, wire management loops, ground wire, door locking key and more.

Pole Mount Available
A pole mounting kit (NMK-0001) is also available for this enclosure.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material Polycarbonate + ABS
Color Gray
Voltage 120VAC
Max Load 10A @ 120VAC
Outer Dimensions 16.5 x 12.5 x 5.3 Inches
(420 x 320 x 133 mm)
Inner Dimensions 15.7 x 11.8 x 4.8 Inches
(399 x 300 x 120 mm)
Mounting Plate Material 0.10 in (2.5 mm) Aluminum
Mounting Plate Dimensions 14.9 x 11.2 in. (378 x 284 mm)
Weight 5.8 lbs. (2.6 kg)
Power Cord Length 5 Feet (1.5m)
Ratings NEMA Type 3, 3X / IP55
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 1.02 in. (26 mm)
(4) 1.30 in. (33 mm)


NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
