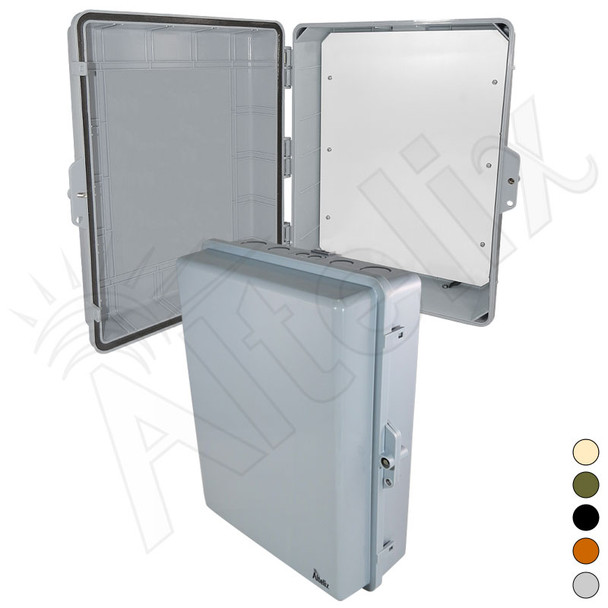

Altelix 17x14x6 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate

SKU:
NP171406MP
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof WiFi NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof WiFi NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof WiFi NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof WiFi NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof WiFi NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof WiFi NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof WiFi NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof WiFi NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate
Contact Us for Pricing
  • Altelix Pole Mount Kit for NP171406 NEMA Enclosures
  • Pole Mount Kit for NP171406 NEMA Enclosures
  • Key for NP Series Enclosures
  • 35mm Top Hat DIN Rail Kit for NF141206, NF141208 & NP171406 Series Enclosures
For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

The Altelix NP171406MP Polycarbonate + ABS NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Construction and Features
This enclosure is IP55 rated and features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. An internal grounding plate is provided as well a wiring clamp to help secure internal wiring.

Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

RF Transparent Design
The NP171406MP is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere the radio's operation. In addition, mounting radios to PVC equipment mounting plate can be done simply by using self-tapping screws. The size of this enclosure will fit a wide range of popular wireless points on the market, such as the Ubiquiti® UniFi® UAP-AC-PRO and the Linksys® LAPAC1200.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit (NMK-0002) is also available for installation on poles up to 8 inches in diameter.

Accessory Kit
The accessory kit included with the enclosure contains the door locking key, rubber grommets, wall anchors and rubber bonded washers (used for wall mounting). Also included is a ground cable, grounding plate and cable clamp which can be mounted to the inside of the enclosure.

Ubiquiti® and UniFi® are trademarks and/or registered trademarks of Ubiquiti Networks, Inc. Linksys® is a trademark and/or registered trademark of Belkin International.

Technical Specifications

Material PC+ABS Polycarbonate / ABS Blend
Color Gray
Outer Dimensions 16.5 x 12.5 x 5.3 Inches
(420 x 320 x 133 mm)
Inner Dimensions 15.7 x 11.8 x 4.8 Inches
(399 x 300 x 120 mm)
Mounting Plate Material 0.25 In. (6.4 mm) PVC Foam
Mounting Plate Dimensions 11.2 x 14.8 In. (285 x 378 mm)
Weight 4.3 lbs. (1.9 kg)
Ratings NEMA Type 3, 3X / IP55
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 1.02 in. (26 mm)
(4) 1.30 in. (33 mm)


NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
