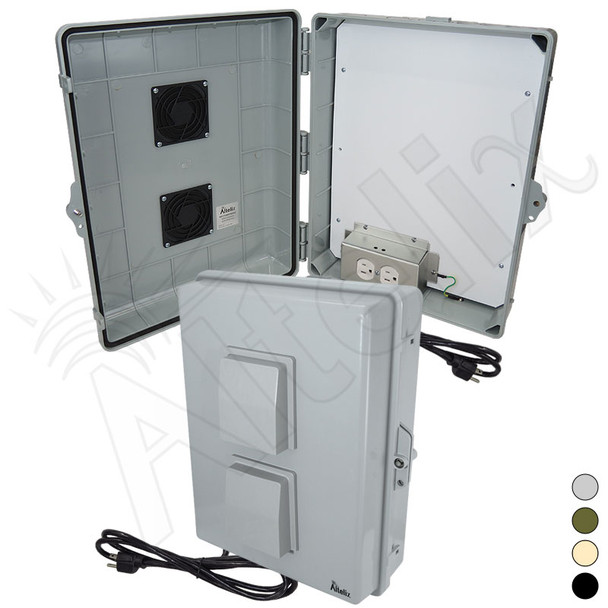

Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord

SKU:
NP171406VMA1C
Availability:
Usually Ships in 1 to 2 Business Days
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Accessory Kit Included with Enclosure
Your Price: $211.99
  • Pole Mount Kit for NP171406 NEMA Enclosures
  • Altelix Pole Mount Kit for NP171406 NEMA Enclosures
  • Key for NP Series Enclosures
For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Dual 3.5" Vents with Rain Shields to Expel Heat
  • ABS + Polycarbonate Enclosure
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • Includes PVC Non-Metallic Equipment Mounting Plate with 120VAC Outlets
  • Pre-wired 5 foot power cord
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Wall Mount Hardware and Cable Grommets
Applications
  • Indoor / Outdoor WiFi Access Points and Routers
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Concealment of Electronic Equipment



The Altelix NP171406VMA1C Vented Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power and Non-Metallic Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Power
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 1/4" thick non-metallic PVC plate with two 120VAC power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. The encosure can also be hard wired by an electrician or qualified installer. An external ground lug is provided. Two cable grommets on the enclosure allows cables to be connected to internal devices. Knock-outs are provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.

Ventilation
This enclosure features two 3 inch air vents with cleanable screens. Rain shields help prevent rain water from entering the enclosure.

Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

RF Transparent Design
The NP171406VMA1C is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere the radio's operation. In addition, mounting radios to PVC equipment mounting plate can be done simply by using self-tapping screws. The size of this enclosure will fit a wide range of popular wireless points on the market.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit (NMK-0001) is also available for installation on poles up to 8 inches in diameter.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material PC+ABS Polycarbonate / ABS Blend
Color Gray
Voltage 120VAC
Max Load 10A @ 120VAC
Outer Dimensions
(Height x Width x Depth)
16.5 x 13.7 x 6.5 Inches
(420 x 348 x 166 mm)
Inner Dimensions*
(Height x Width x Depth)
11.5 x 9.0 x 4.0 Inches
(292 x 229 x 102 mm)
Mounting Plate Material 0.25 In. (6.4 mm) PVC Foam
Mounting Plate Dimensions 14.9 x 11.2 in. (378 x 284 mm)
Weight 6.4 lbs. (2.9 kg)
Power Cord Length 5 Feet (1.5m)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 1.02 in. (26 mm)
(4) 1.30 in. (33 mm)
*Interior dimensions represent maximum space available for equipment.




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
