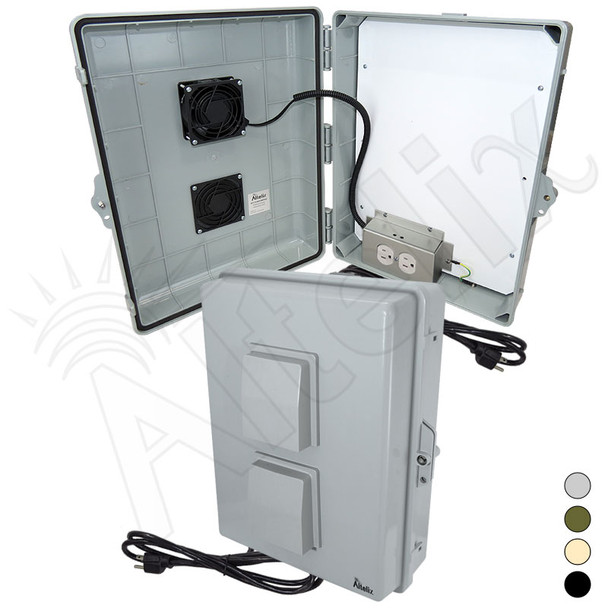

The Altelix NP171406VMFA1C-85 NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The non-metallic equipment mounting plate features two pre-wired 120VAC power outlets for your equipment.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.
Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains wall anchors, zip ties, wire management loops, ground wire, door locking key and more.
85°F Turn-On Cooling Fan
The NP171406VMFA1C-85 is designed for applications which require the cooling fan to turn on at a lower temperature then our standard fan cooled enclosures. The low noise, high airflow fan turns on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. The dual 3" vents feature rain shrouds on the front door keep rain water from entering the enclosure, and the internal screens are removable for cleaning. Dual fans are also available by request.
No-Drill Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.
RF Transparent Design
The NP171406VMFA1C-85 is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless points on the market.
Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
Technical Specifications
Material | PC+ABS Polycarbonate / ABS Blend |
Available Colors | Gray, Black, Light Ivory, OD Green |
Voltage | 120VAC |
Max Load | 10A @ 120VAC |
Cooling Fan Turn-On Temperature | 85°F (30°C) ±6°F |
Cooling Fan Turn-Off Temperature | 59°F (15°C) ±9°F |
Outer Dimensions (Height x Width x Depth) | 16.5 x 13.7 x 6.7 Inches (420 x 348 x 167 mm) |
Inner Dimensions* (Height x Width x Depth) | 11.5 x 9.0 x 3.2 Inches (292 x 229 x 81 mm) |
Mounting Plate Material | 0.25 In. (6.4 mm) PVC |
Mounting Plate Dimensions | 14.9 x 11.2 in. (378 x 285 mm) |
Weight | 7.1 lbs. (3.2 kg) |
Power Cord Length | 5 Feet (1.5m) |
Ratings | NEMA Type 3R, 3RX / IP24 |
Flame Rating | Meets UL94-V0 |
Knockout Sizes (Diameter) | (4) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (4) 1.30 in. (33 mm) |
*Notes: 1) Interior dimensions represent maximum space available for equipment. |
NEMA Ratings and IP Equivalency Chart |
Need a pole mount kit, an extra set of enclosure keys or something else? Click the ADD-ONS and ACCESSORIES button below to see all the available accessories for this enclosure.
