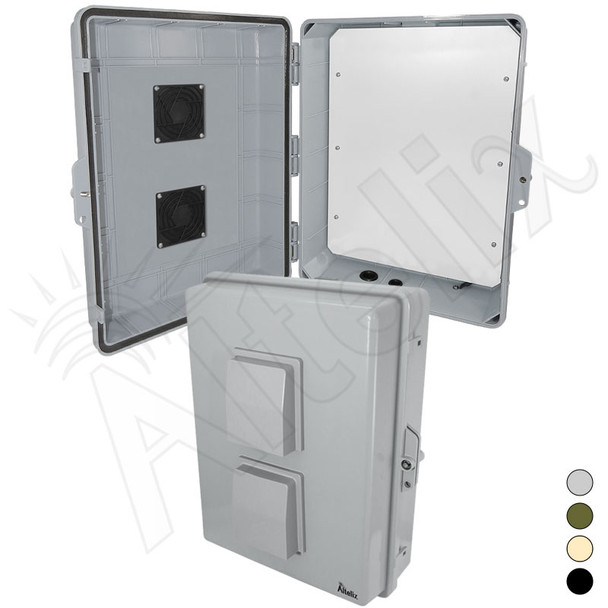

Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate

SKU:
NP171406VMP
Availability:
Usually Ships in 1 to 2 Business Days
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof WiFi NEMA Enclosure with Full Size Non-Metallic Equipment Mounting Plate
Your Price: $149.99
  • Altelix Pole Mount Kit for NP171406 NEMA Enclosures
  • Pole Mount Kit for NP171406 NEMA Enclosures
  • Key for NP Series Enclosures
For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Dual 3.5" Vents with Rain Shields to Expel Heat
  • ABS + Polycarbonate Enclosure
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • Includes PVC Non-Metallic Equipment Mounting Plate
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Wall Mount Hardware and Cable Grommets
  • Optional Pole Mount Kit Available
Applications
  • WiFi Access Points and Routers
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor Use of Indoor Equipment
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment



The Altelix NP171406VMP Vented Polycarbonate + ABS NEMA Enclosure with Non-Metallic Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Construction and Features
This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. An internal grounding plate is provided as well a wiring clamp to help secure internal wiring.

Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

RF Transparent Design
The NP171406VMP is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere the radio's operation. In addition, mounting radios to PVC equipment mounting plate can be done simply by using self-tapping screws. The size of this enclosure will fit a wide range of popular wireless points on the market.

Ventilation
The NP171406VMP features two 3.5 inch air vents to help expel heat inside the enclosure. Rain shields help prevent rain water from entering the enclosure.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit (NMK-0002) is also available for installation on poles up to 8 inches in diameter.

Accessory Kit
The accessory kit included with the enclosure contains the door locking key, rubber grommets, wall anchors and rubber bonded washers (used for wall mounting). Also included is a ground cable, grounding plate and cable clamp which can be mounted to the inside of the enclosure.

Technical Specifications

Material PC+ABS Polycarbonate / ABS Blend
Color Gray
Outer Dimensions 16.5 x 12.5 x 5.3 Inches
(420 x 320 x 133 mm)
Inner Dimensions 15.7 x 11.8 x 4.8 Inches
(399 x 300 x 120 mm)
Mounting Plate Material 0.25 In. (6.4 mm) PVC Foam
Mounting Plate Dimensions 11.2 x 14.8 In. (285 x 378 mm)
Weight 4.3 lbs. (1.9 kg)
Ratings NEMA Type 3R, 3XR / IP24
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 1.02 in. (26 mm)
(4) 1.30 in. (33 mm)




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
