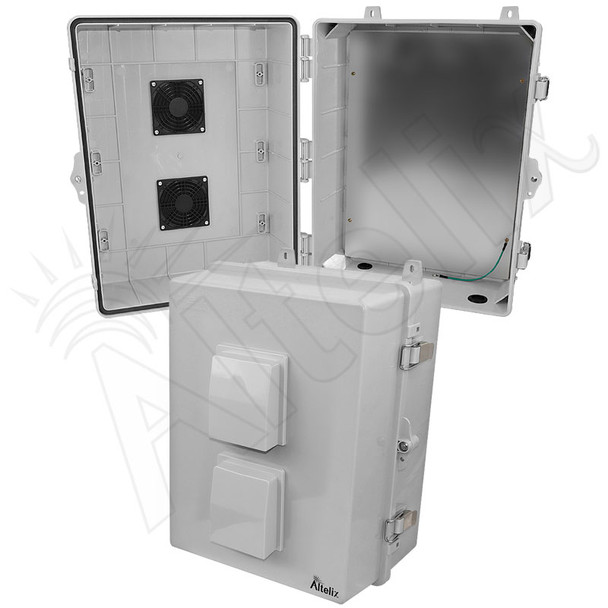

The Altelix NP171409VP NEMA enclosure is ideal for protecting devices from harsh environments and tampering, while allowing ventilation for installed equipment or batteries. It features an extra deep lid providing additional depth.
Increased Interior Space
This enclosure features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP171409VP can accommodate a wide range of equipment.
Ventilation
The NP171409VP features two vents with rain shields to help expel heat from inside the enclosure. Screens on the inside of the vents can be removed and cleaned as required.
Aluminum Equipment Mounting Plate
Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.
Note: this enclosure is also available with a non-metallic PVC equipment mounting plate (see NP171409VM) and without an equipment mounting plate (see NP171409V).
Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock is also provided.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.
Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.
Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
Technical Specifications
| Material | PC+ABS Polycarbonate / ABS Blend |
| Color | Gray |
| Outer Dimensions (Height x Width x Depth) |
17.1 x 13.6 x 10.5 Inches (435 x 347 x 266 mm) |
| Inner Dimensions* (Height x Width x Depth) |
14 x 9 x 8.1 Inches (355 x 228 x 205 mm) |
| Mounting Plate Material | 0.06 in. (1.5 mm) Aluminum |
| Mounting Plate Dimensions | 14.5 x 10.6 in. (368 x 269 mm) |
| Weight | 7.1 lbs. (3.2 kg) |
| Ratings | NEMA Type 3R, 3RX / IP24 |
| Flame Rating | Meets UL94-V0 |
| Industry Certifications | CE |
| Knockout Sizes (Diameter) | (4) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm) |
| *Interior dimensions represent maximum space available for equipment. |
 |
NEMA Ratings and IP Equivalency Chart |
Downloads
Need a pole mount kit, an extra set of enclosure keys or something else? Click the ADD-ONS and ACCESSORIES button below to see all the available accessories for this enclosure.
