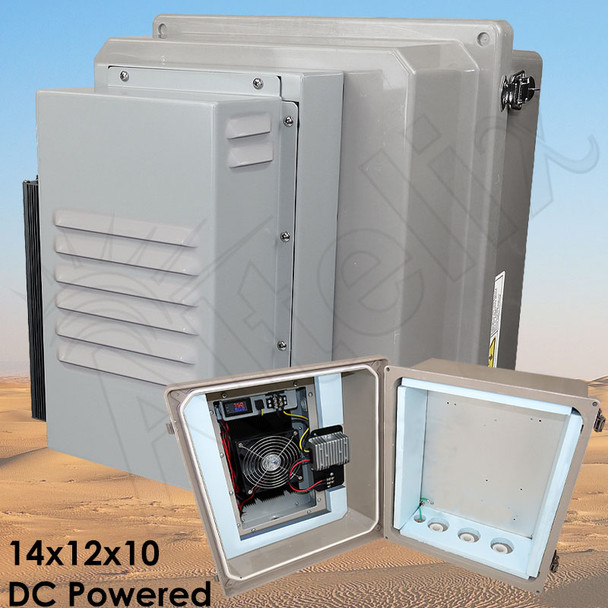

Altelix DC Powered Air Conditioned Enclosure - 14x12x10 Fiberglass Weatherproof NEMA 4X Rated, 12VDC, 24VDC, 48VDC

The Altelix NF141210D-AZ DC Powered Air Conditioned Weatherproof NEMA 4X Enclosure is ideal for protecting sensitive equipment from harsh environments and tampering. The digitally controlled air conditioning system helps maintain optimal internal temperatures so internally mounted equipment can operate at peak performance. This enclosure is designed for both indoor and outdoor applications. Available in 12VDC, 24VDC or 48VDC models, this enclosure can be powered from DC solar and battery power sources.

Maintenance Free Air Conditioning System
The NF141210D-AZ features a digitally controlled DC powered conditioning system. Mounted externally on the enclosure to maximize interior space, this system provides 360 BTU of cooling. Operation of this system is done via a programmable digital temperature controller. Air conditioning Turn-On/Turn-Off temperatures can be  programmed within a set range temperature set by the user. The entire system is housed in a rugged powder coated steel housing and is mounted to the front of the enclosure. An external drain on the air-conditioner unit is provided to direct any condensation to outside the enclosure.

Designed to be maintenance free, this Air-Conditioning system features no moving components (except for fan), no compressor, refrigerant or filters to be changed. The reliable solid state construction ensures a long operational life span.

Thermal Insulation
To help maintain internal temperatures, this enclosure features 0.50 inch (12.7mm) thick insulation attached to the interior of the enclosure.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature a gasketed lid with improved stainless steel hinges and high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions.

Increased Interior Space
The NF141210 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF141208 series enclosures. With the generous size of this enclosure and extended lid the NF141210 can accommodate a wide range of equipment.

Equipment Mounting Plate
This enclosure includes an aluminum equipment mounting plate that can be easily drilled and modified by the installer to suit unique site requirements.

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. Click Here to view all available mounts for this enclosure.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Model Number	NF141210D1-AZ	NF141210D2-AZ	NF141210D4-AZ
Material	Fiberglass Reinforced Polyester	Fiberglass Reinforced Polyester	Fiberglass Reinforced Polyester
Color	Light Gray	Light Gray	Light Gray
A/C Unit Input Voltage	12VDC	24VDC	48VDC
A/C Unit Power Consumption	12VDC @ 16A max.	24VDC @ 8A max.	48VDC @ 4A max.
Digital Controller Operational Temperature Range	-14F° (-10C°) to 120F° (60C°)	14F° (-10C°) to 120F° (60C°)	14F° (-10C°) to 120F° (60C°)
Insulation Thickness	0.50 inch (12.7mm)	0.50 inch (12.7mm)	0.50 inch (12.7mm)
Insulation R-Value	2	2	2
Cooling Capacity	360 BTU @ 48V	360 BTU @ 48V	360 BTU @ 48V
Exterior Dimensions (Height x Width x Depth)	15.7 x 13.8 x 16.5 Inches (401 x 352 x 419.1 mm)	15.7 x 13.8 x 16.5 Inches (401 x 352 x 419.1 mm)	15.7 x 13.8 x 16.5 Inches (401 x 352 x 419.1 mm)
Interior Dimensions* (Height x Width x Depth)	13.0 x 11.0 x 8.7 Inches (330 x 279 x 222 mm)	13.0 x 11.0 x 8.7 Inches (330 x 279 x 222 mm)	13.0 x 11.0 x 8.7 Inches (330 x 279 x 222 mm)
Equipment Plate Material	0.10 in (2.5 mm) Aluminum	0.10 in (2.5 mm) Aluminum	0.10 in (2.5 mm) Aluminum
Equipment Plate Dimensions	10.9 x 12.8 in. (276 x 324 mm)	10.9 x 12.8 in. (276 x 324 mm)	10.9 x 12.8 in. (276 x 324 mm)
Weight	27.4 lbs. (12.4 kg)	27.4 lbs. (12.4 kg)	27.4 lbs. (12.4 kg)
Noise Level	55dB	55dB	55dB
Ratings	NEMA Type 4, 4X / IP66	NEMA Type 4, 4X / IP66	NEMA Type 4, 4X / IP66
Flame Rating	UL94-5V	UL94-5V	UL94-5V
*Notes: 1) Enclosure ports must be properly sealed to maintain NEMA Type 4, 4X / IP66 rating. 2) Interior dimensions represent maximum space available for equipment.
