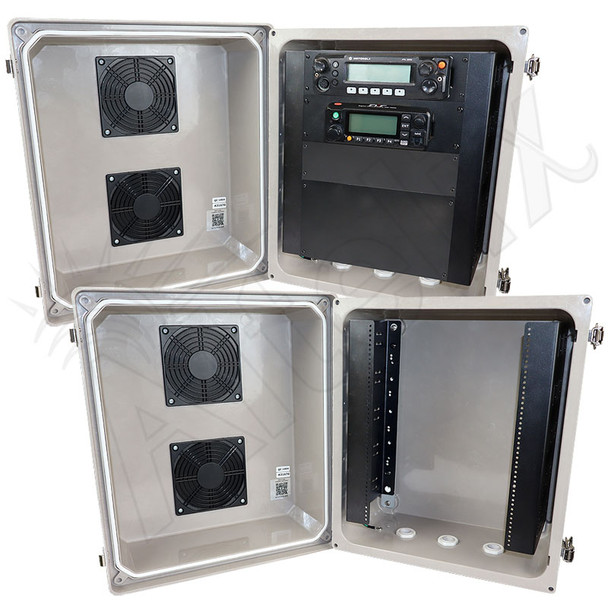

Altelix Havis® and Jotto Desk® Heavy Duty Vented Weatherproof Console Enclosure - Fiberglass FRP 14x12x10

The Altelix Vented Havis® and Jotto Desk® Console Enclosure provides extreme protection for a wide range of console mountable devices from harsh environments and tampering.

Havis® and Jotto Desk® Compatible
Mounted inside this rugged enclosure is a heavy duty steel mounting frame which is compatible with both Havis® and Jotto Desk® equipment brackets. Slots in the sides of the frames provide locations for mounting additional equipment and zip ties for cable management. This mounting frame provides 11" of equipment mounting space. Optional filler panels and radio brackets are available from Altelix.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal environments. The gasketed door includes stainless steel quick release latches with padlock hasps.

Increased Interior Space
The NF141210V-HJC enclosure features an extra deep lid. With the generous size of this enclosure and extended lid the NF141210V-HJC can accommodate a wide range of equipment.

Secure Your Equipment
The gasketed door includes stainless steel quick release latches with padlock hasps. Padlocks are available in the accessories section.

Ventilation
The NF141210V-HJC features two vents with rain shields to help expel heat from inside the enclosure. Screens on the inside of the vents can be removed and cleaned as required.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting Options
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. Click Here to view all available mounts for this enclosure.

Optional Filler Panels and Radio Brackets Available
Altelix has available optional filler panels ranging from 1/2" to 6" high. Also available optional radio mounting brackets designed for use with Motorola® XTL-1500, XTL-2500, XTL-5000, APX-6500, APX-7500, APX-8500 and TYT Electronics® MD-9600 DMR Mobile Radios. See the accessories section available filler panels and radio brackets.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Havis® is a trademark or registered trademark of Havis, Inc. Jotto Desk® is a trademark or registered trademark of Assembled Products, Corp.

Technical Specifications

Material	Fiberglass Reinforced Polyester
Color	Gray
Outer Dimensions (Height x Width x Depth)	15.7 x 13.8 x 12.2 Inches (401 x 352 x 311 mm)
Inner Dimensions (Height x Width x Depth)	13.0 x 11.0 x 9.7 Inches (330 x 279 x 246 mm)
Mounting Frame Material	Black Powder Coated Steel
Mounting Frame Capacity	11 in. of Equipment Mounting Space
Mounting Frame Compatibility	Havis® & Jotto Desk® Equipment Brackets
Weight	16.8 lbs. (7.6 kg)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	UL94-5V
Industry Certifications	CE
Knockout Sizes (Diameter)	(4) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm)

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
