Altelix PoE Powered Aimable Weatherproof Starlink® Mini NEMA 4X Directional Enclosure

The Altelix Starlink® Mini NEMA 4X Aimable PoE Enclosure allows your Starlink® Mini to receive power and data with a single Ethernet cable (not included) up to 825 feet while providing the ultimate protection. This rugged weatherproof directional enclosure can withstand the harshest environments and provides a way to securely deploy the Starlink® Mini.

Eliminate Running Multiple Cables

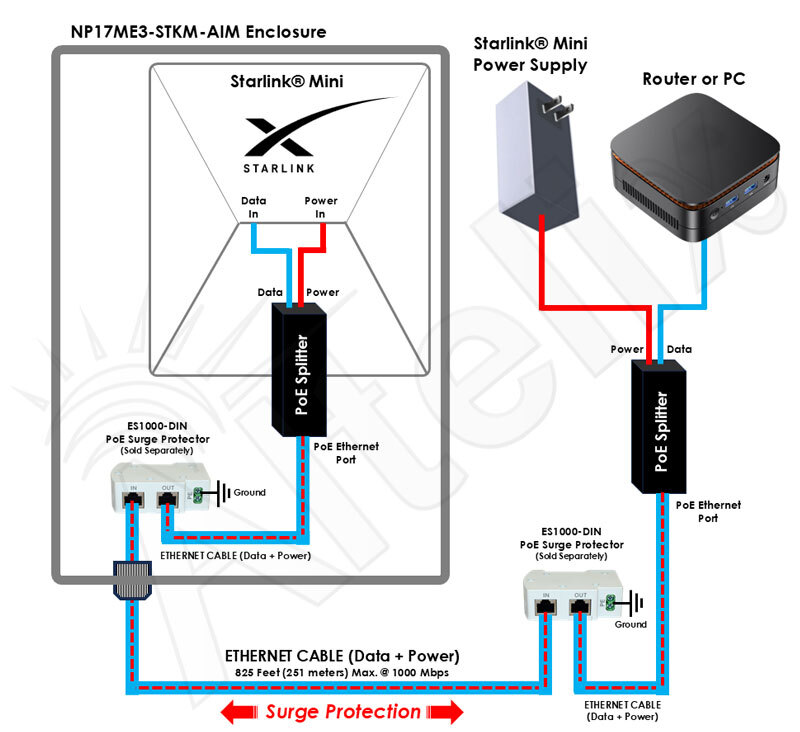

This enclosure includes (2) PoE splitters which allow the Starlink® Mini to receive its power and data from a single Ethernet cable. This eliminates the need for an AC outlet at the enclosure location. The first splitter which is installed near a power source is connected to the Starlink® Mini's power supply as well as a router or PC. From this splitter an Ethernet cable up 825 feet (max length at 1000Mbps) can be ran to the enclosure and connected to the second splitter. This second splitter is then connected to the Starlink® Mini's power jack and Ethernet port. This is ideal for remote locations where power is not available.

For added surge protection Altelix has available the ES1000-DIN Gigabit Ethernet PoE Surge Protector. Installing these protectors at each end of the Ethernet cable helps prevent damage from energy spikes that can be caused by lightning and other strong electrical power surges. To install the protector inside the enclosure a 35mm Top Hat DIN rail required and is available in the accessories section along with the ES1000-DIN surge protector.

Aimable Enclosure for Better Satellite Reception
This enclosure features a heavy duty cast aluminum tilt-n-swivel mounting bracket attached to the rear of the enclosure. This bracket is designed to articulate in both vertical and horizontal planes which allows for precise adjustment and aiming of the enclosure to achieve the best satellite reception. This tilt-n-swivel bracket is designed for both wall and pole/mast mounting. It can be mounted to pole and masts ranging from 1-3 inches in diameter. Using the optional adjustable stainless steel bands available from Altelix, it can be mounted to poles up to 13 inches in diameter.

Starlink® Mini Mounting System
This enclosure features a RF transparent mounting system located in the lid of the enclosure designed specifically for the Starlink® Mini. Angled up 30 degrees, this mounting system places the Starlink® Mini in the optimal position for the best satellite reception and wireless coverage. Easy to install, simply slide the Starlink® Mini into the mount and lock into place. For installations subject to vibrations such as in vehicles, a hook-n-loop strap is provided. Two pre-installed cable glands are provided on the enclosure for the Starlink® Mini power and Ethernet cables.

Polycarbonate + ABS Protection Built to Last
Built to last, this enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements. This enclosure meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Secure Your Equipment
To better secure the Starlink® Mini this enclosure features dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

RF Transparent Design
The non-metallic design of the enclosure and mounting system is RF transparent and will not interfere with the wireless signal range or coverage pattern.

Additional Starlink® Mini Enclosures
The NP17MA1C-STKM-AIM enclosure features an internal pre-wired 120VAC power outlet and 5 foot power cord. This enclosure is also available with an optional 50W heater for cold temperature environments.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Starlink® is a trademark or registered trademark of Space Exploration Technologies Corp.

Technical Specifications

Enclosure Material	PC+ABS Polycarbonate / ABS Blend
Color	Gray
Outer Dimensions (Height x Width x Depth)	17.1 x 13.6 x 9.3 Inches (435 x 347 x 234 mm)
Inner Dimensions (Height x Width x Depth)	14 x 9 x 8.2 Inches (355 x 228 x 208 mm)
Weight with Tilt Bracket	9.4 lbs. (4.2 kg)
Mounting Bracket Material	Die-Cast Aluminum
Pole Mounting Diameter Size	1 to 3 Inches (25.4 to 76.2 mm)
PoE Splitters Data Speed	10/100/1000 Mbps
Maximum Ethernet Cable Length	825 Feet (251.4 meters) @ 1000 Mbps
Ratings	Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
Flame Rating	Meets UL94-V0
Industry Certifications	CE
Knockout Sizes (Diameter)	(4) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm)
Compatible Starlink® Models	Starlink® Mini - Model #UTA-231

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
