Description
Features
| Applications
|
The Altelix Vented Cisco® Business 240AC Enclosure is a weatherproof enclosure designed to provide indoor or outdoor protection for the Cisco® Business CBW240AC-B access point. This non-powered enclosure is ideal for installations powering the Cisco® CBW240AC-B via PoE only.
Install Your 240AC Access Point Securely Outdoors
This sleek enclosure is molded from weatherproof UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS, for extreme durability. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. The wall mounting screws are concealed securely within the enclosure to prevent tampering. There is also a provision for a padlock. Two 3" inch air vents with rain shields and screens provide ventilation for the Cisco® Business 240AC. This enclosure meets or exceeds NEMA 3R, 3RX and IP24.
Easy Setup
The equipment mounting plate of the NP14VM-CSC1 is pre-drilled to except the mounting bracket that is included with the Cisco® Business 240AC. Simply attach the mounting bracket to the plate and then install the access point. Once the 240AC is securely mounted inside the enclosure, special cable glands on the enclosure will allow terminated Ethernet cables to be connected to the access point.
RF Transparent Design
The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.
Mounting
The NP17VM-CSC1 enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for mounting on poles or fence posts.
Additional Enclosures for Ciscoi® Wireless Equipment
In addition to this enclosure, Altelix has enclosures for a wide range of Cisco® wireless access points and extenders. Click Here to view all available models.
Cisco® is a trademark or registered trademark of Cisco Systems, Inc.
Technical Specifications
| Material | PC+ABS Polycarbonate / ABS Blend |

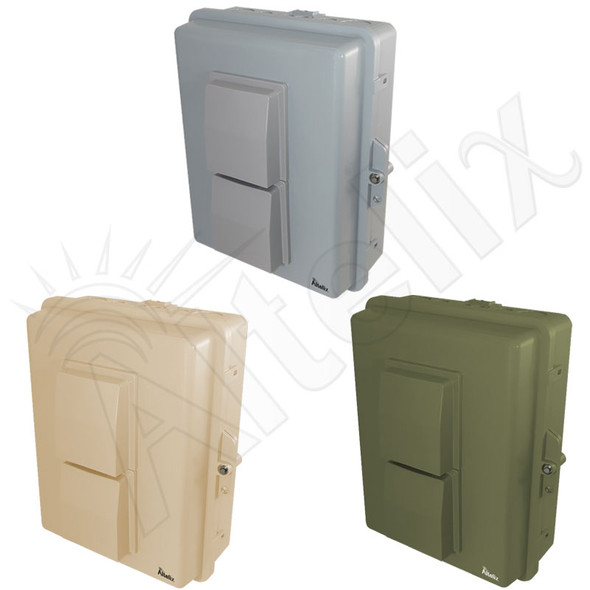

| Available Colors | Gray, Black, Light Ivory, OD Green |
| Outer Dimensions | 13.4 x 11.5 x 6.7 Inches (340 x 293 x 159 mm) |
| Inner Dimensions | 12.0 x 8.0 x 3.8 Inches (304 x 203 x 97 mm) |
| Mounting Plate Material | 0.25 In. (6.4 mm) PVC |
| Mounting Plate Dimensions | 9.0 x 11.7 In. (230 x 298 mm) |
| Weight | 4.0 lbs. (1.7 kg) |
| Ratings | NEMA Type 3R, 3RX / IP24 |
| Flame Rating | Meets UL94-V0 |
| Compatible Cisco® Model | Cisco® Business CBW240AC-B |
 | NEMA Ratings and IP Equivalency Chart |
Downloads
Same Day Shipping -
Need a pole mount kit, an extra set of enclosure keys or something else? Click the ADD-ONS and ACCESSORIES button below to see all the available accessories for this enclosure.
