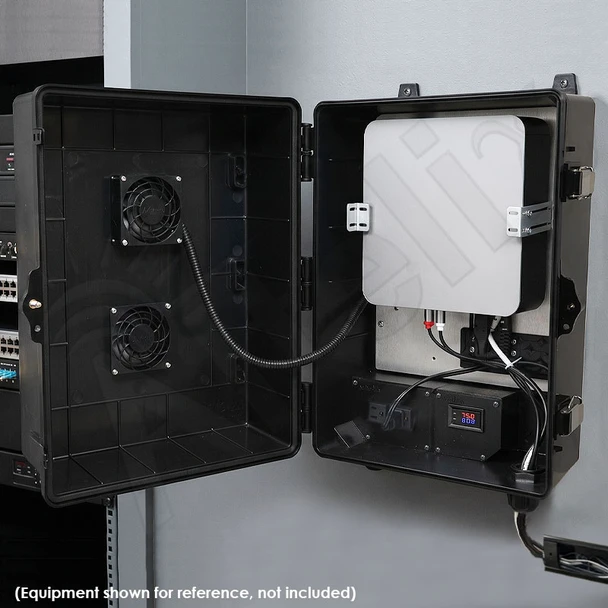

Altelix Weatherproof Audio Video Enclosure with Universal Equipment Mounting and 120 VAC Outlets

New and Improved!
Altelix is excited to offer the newly redesigned NP17AV enclosure for use with a wide range of Audio/Video and Network devices. Some of the new features include:

• Dual stainless steel latches
• Multiple mounting options - (4) external mounting feet and internal mounting points
• Deeper enclosure base
• Increased number of multiple sized knock-out holes provided on bottom of enclosure
• Now available with a 50W thermostat controlled heater

The Altelix NP17AV Enclosure is a weatherproof enclosure designed to provide indoor or outdoor protection for a wide range of Audio/Video and Network devices including:

• SONOS® PORT
• SONOS® Connect:Amp™ (For SONOS® AMP see NP17AVGY-SNS1)
• Apple Mac mini®
• Amazon Echo® Link Amp
• Control4® EA-3 Controller (C4-EA3 and C4-EA3-V2)
• Crestron® MC3 3-Series Control System®
• Bluesound® Powernode Streaming Amplifier

Install Your A/V Equipment Securely Outdoors
This sleek enclosure is molded from weatherproof UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS, for extreme durability. The door features dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Universal Mounting System
The NP17AV features a versatile adjustable mounting system that allows a wide range of devices to be installed inside the enclosure.

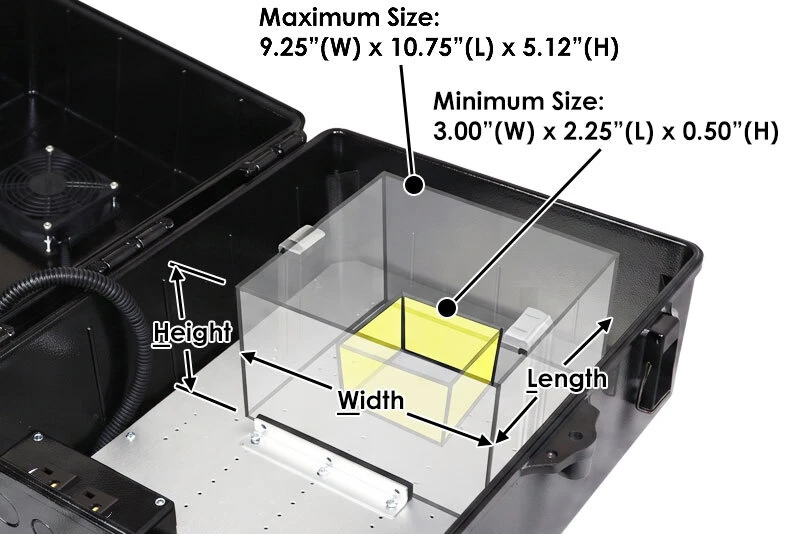

The following illustration shows the minimum and maximum size of devices that can be installed inside the enclosure.

Plug and Play Setup
The NP17AV enclosure provides easy plug-n-play installation. Once your equipment is securely mounted inside the enclosure, connect its power cord to the internal 120VAC power outlet. A cable grommet and cable gland on the enclosure allows cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into an outdoor outlet and you are up and running. Included in the accessory kit, a self-adhesive mirror can be attached to the inside of the enclosure to provide visibility to any controls and indicator lights on the installed equipment.

Cooling Fan Ventilation
The NP17AV enclosure features dual 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets. Rain shrouds on the front door keep rain water from entering the enclosure.

50W Thermostat Controlled Heater

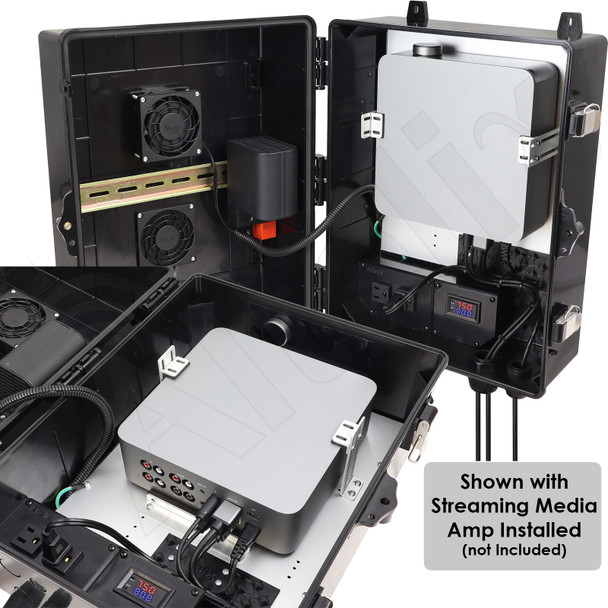

For all weather operation the NP17AVH is available with a 50W thermostat controlled heater in addition to the cooling fan. This heater generates a high air-current of warm air due to the design which supports natural convection. The internal design of this heater helps reduce the surface temperatures on the accessible sides of the housing. The heater turns on when the internal temperature reaches 59°F (15°C) and turns off when it rises to 77°F (25°C). The heater is mounted to a DIN rail in the enclosure lid and is wired internally leaving the power outlets available for the installed equipment.

Optional USB Charging Ports
Available as an option, the NP17AVGY and NP17AVHGY can be purchased with USB-A and USB-C charging ports. These 5VDC 3.6A USB ports are integrated into the 120VAC outlet, so no additional room in the enclosure is required. Note: these ports used to power/charge electronic devices only, no data transfer capability.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Enclosure Mounting Option
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Pre-Engineered Enclosures
In addition to the NP17AV enclosures, Altelix has available Pre-Engineered enclosures designed specifically for use with the following devices:

• SONOS® AMP - NP17AVGY-SNS1 & NP17AVHGY-SNS1
• Bose® Music Amplifier - NP17VPFA1C-BOS1 & NP17VPFHA1C-BOS1
• Denon® Home Amp - NP17VPFA1C-DEN1 & NP17VPFHA1C-DEN1
• WiiM® Amp and WiiM® Amp Pro - NP17VPFA1C-WIM1 & NP17VPFHA1C-WIM1

Like the NP17AV, these enclosures are feature 120 VAC power outlets and are available with thermostat controlled cooling fans and heater.

SONOS® and Connect:Amp™ are trademarks or registered trademarks of SONOS, Inc. Mac Mini® is a trademark or registered trademark of Apple, Inc. Amazon Echo® is a trademark or registered trademark of Amazon.com, Inc. Control4® is a trademark or registered trademark of Control4 Corporation. Crestron® and MC3 3-Series Control System® are trademarks or registered trademarks of Crestron Electronics, Inc. Bluesound® is a trademark or registered trademark of Bluesound International.

Technical Specifications

Material	PC+ABS Polycarbonate / ABS Blend
Colors	Gray
Voltage	120VAC
Max Load	10A @ 120VAC
Optional USB Ports	(1) USB Type-A & (1) USB Type-C Total USB Output: 5VDC, 3.6A
Cooling Fan Turn-On Temperature	100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature	79°F (26°C) ±9°F
Optional Heater Turn-On Temperature	59°F (15°C) ±9°F
Optional Heater Turn-Off Temperature	77°F (25°C) ±9°F
Optional Heater Power	50 Watts
Outer Dimensions (Height x Width x Depth)	17.1 x 13.6 x 10.5 inches (435 x 347 x 266 mm)
Inner Dimensions (Height x Width x Depth)	11.8 x 9 x 7.2 Inches (299 x 228 x 182 mm)
Mounting Plate Material	0.06 in (1.5 mm) Aluminum
Weight	8.7 lbs. (3.9 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	Meets UL94-V0
Industry Certifications	CE
Knockout Sizes (Diameter)	(4) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm)

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
