Altelix Weatherproof Starlink® Gen 3 Pro Enclosure with Cooling Fan, 120 VAC Outlets and Optional 50W Heater

Industrial Grade Protection for the Starlink® Pro / In-Motion Satellite System

The Altelix Starlink® Pro Gen 3 Enclosure is a weatherproof fan-cooled enclosure designed to provide the ultimate protection for the Starlink® Pro Gen 3 Wi-Fi Router and Power Supply. It is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet.

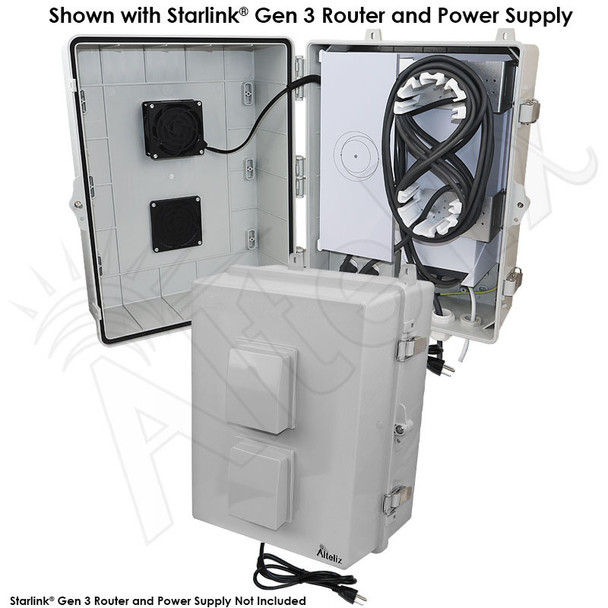

Install the Starlink® Pro Gen 3 Router and Power Supply into a Single Enclosure
Designed specifically for the Starlink® Pro Gen 3 system, the Starlink® Gen 3 Router and Power Supply can all be installed into a single enclosure. A mounting bracket inside the enclosure holds the Starlink® Gen 3 Router securely in place. To install the Starlink® Power Supply, provisions on the equipment mounting plate are provided for wall mounting bracket* included with the power supply. An easy to use cable management system is also provided for all the required cables. Two custom cable glands installed on the enclosure allow the Starlink® antenna cable as well as an Ethernet cable to be easily fed into the enclosure.

Installation Note: Installers must use the wall mounting bracket which is included with the Starlink® Pro Power Supply. This mounting bracket is not provided by Altelix.

Fan Cooling with Thermostat Control
This enclosure features two 3" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all the power outlets available for the Starlink® Router and power supply.

50W Thermostat Controlled Heater
For all weather operations this enclosure is available with a 50W thermostat controlled heater in addition to the cooling fan. This heater generates a high air-current of warm air due to the design which supports natural convection. The internal design of this heater helps reduce the surface temperatures on the accessible sides of the housing. The heater turns on when the internal temperature reaches 41°F (5°C) and turns off when it rises to 59°F (15°C). The heater is mounted to a DIN rail in the enclosure lid and is wired internally leaving the power outlets available for the Starlink® devices.

Polycarbonate + ABS Protection Built to Last
Built to last, this enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

RF Transparent Design
The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.

Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Starlink® is a trademark or registered trademark of Space Exploration Technologies Corp.

Technical Specifications

Material	PC+ABS Polycarbonate / ABS Blend
Color	Gray
Voltage	120VAC
Max Load	10A @ 120VAC
Cooling Fan Turn-On Temperature	100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature	79°F (26°C) ±9°F
Optional Heater Turn-On Temperature	41°F (5°C) ±9°F
Optional Heater Turn-Off Temperature	59°F (15°C) ±9°F
Optional Heater Power (Height x Width x Depth)	50 Watts
Outer Dimensions (Height x Width x Depth)	17.1 x 13.6 x 10.5 Inches (435 x 347 x 266 mm)
Inner Dimensions (Height x Width x Depth)	11.8 x 9 x 7.3 Inches (299 x 228 x 185 mm)
Weight	8.6 lbs. (3.9 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	Meets UL94-V0
Industry Certifications	CE
Compatible Starlink® Models	Starlink® Gen Router - Model #UTR-232 Starlink® Power Supply - Model #UTP-221

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
