Extend Your Wireless Coverage to Outdoor Locations

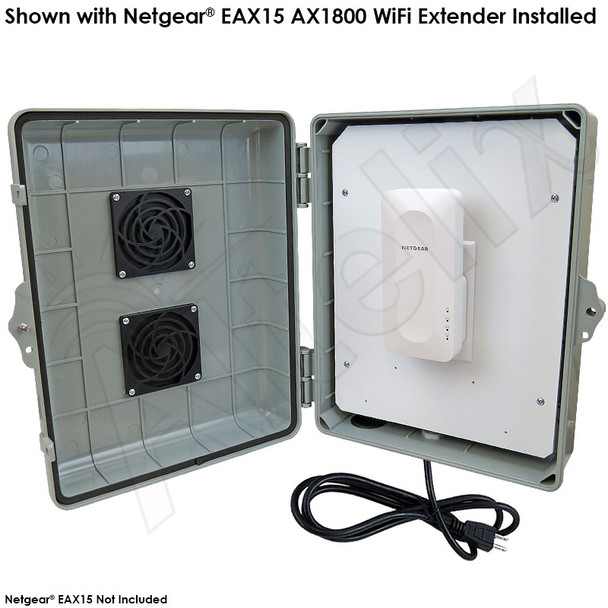

The Altelix WiFi Extender Enclosure is a vented weatherproof enclosure designed to provide added security from vandalism and protection from harsh environments, while allowing ventilation for the Netgear® EAX15 AX1800 WiFi Extender. It features two 3" inch air vents with rain shields and screens.
Rugged Polycarbonate + ABS Construction
This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.
Plug and Play Setup
The Altelix WiFi Extender enclosure provides easy plug-n-play installation. Once the enclosure is mounted, plug the Netgear® EAX15 AX1800 into the pre-wired 120VAC power outlet. Then plug the enclosure's 5 foot power cord into a 120VAC power outlet and you are up and running. A cable grommet on the enclosure allow cables to be connected to the device if needed.
RF Transparent Design
The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the WiFi signal range or coverage pattern of the Netgear® EAX15 AX1800 WiFi Extender.
Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
Netgear® is a trademark or registered trademark of Netgear, Inc.
Technical Specifications
| Material | Polycarbonate + ABS |
| Available Colors | Gray, Black, Light Ivory, OD Green |
| Voltage | 120VAC |
| Max Load | 10A @ 120VAC |
| Outer Dimensions (Height x Width x Depth) | 13.4 x 11.5 x 6.3 Inches (340 x 293 x 160 mm) |
| Inner Dimensions* (Height x Width x Depth) | 9.5 x 8.0 x 3.8 Inches (241 x 203 x 98 mm) |
| Mounting Plate Material | 0.25 in. (6.4mm) PVC |
| Weight | 4.1 lbs. (1.8 kg) |
| Power Cord Length | 5 Feet (1.5m) |
| Ratings | NEMA Type 3R, 3RX / IP24 |
| Flame Rating | Meets UL94-V0 |
| Compatible Netgear® Model | Netgear® EAX15 AX1800 |
| *Interior dimensions represent maximum space available for equipment. |
 | NEMA Ratings and IP Equivalency Chart |
