Altelix Weatherproof Aimable Enclosures for Starlink® Mini

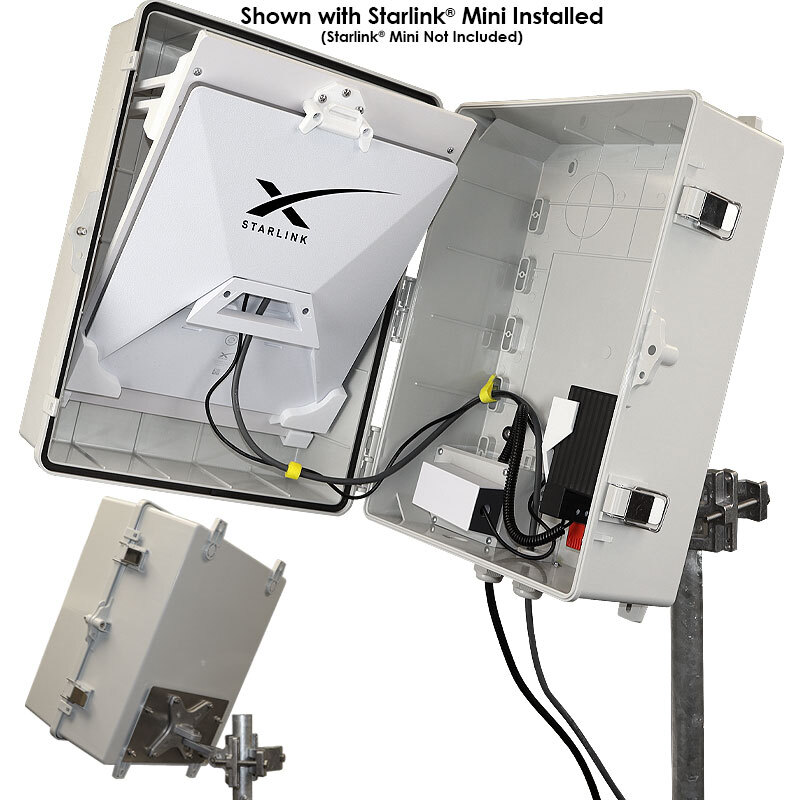

Altelix introduces and new line of Aimable enclosures designed for the Starlink® Mini. These rugged NEMA 4X polycarbonate enclosures feature a heavy duty cast aluminum tilt-n-swivel mounting bracket attached to the rear of the enclosure. This bracket is designed to articulate in both vertical and horizontal planes which allows for precise adjustment and aiming of the enclosure to achieve the best satellite reception. This tilt-n-swivel bracket is designed for both wall and pole/mast mounting. Some of the features of these new enclosures include:

• RF transparent mounting system designed for the Starlink® Mini
• Starlink® Mini mounting system located in the enclosure lid is angled up 30 degrees
• Durable Polycarbonate + ABS construction
• Weatherproof and UV Stable
• Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
• Tamper-Proof locking screw with key and provision for padlock
• Available versions include non-powered, PoE powered, 120VAC powered and with heat

Non-Power Model
The NP17M-STKM-AIM features two cable glands for use with the Starlink® Mini's power and Ethernet cables.

Power-over-Ethernet (PoE) Powered Model

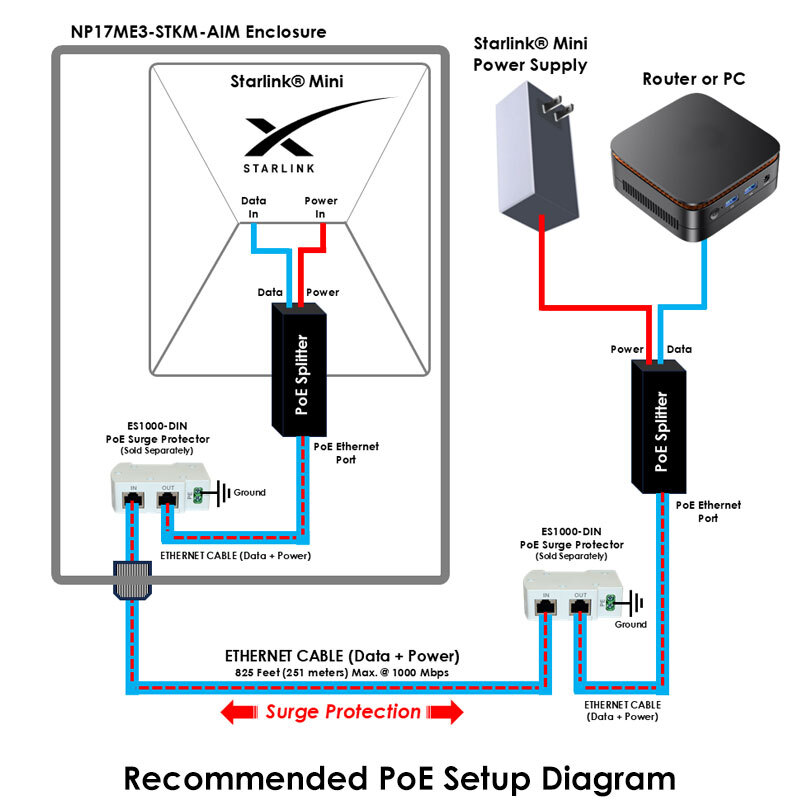

The NP17ME3-STKM-AIM includes (2) PoE splitters which allow the Starlink® Mini to receive its power and data from a single Ethernet cable. This eliminates the need for an AC outlet at the enclosure location. This PoE system enables the enclosure to be installed to up 825 feet (max length at 1000Mbps) from a power source.

120VAC Powered Model

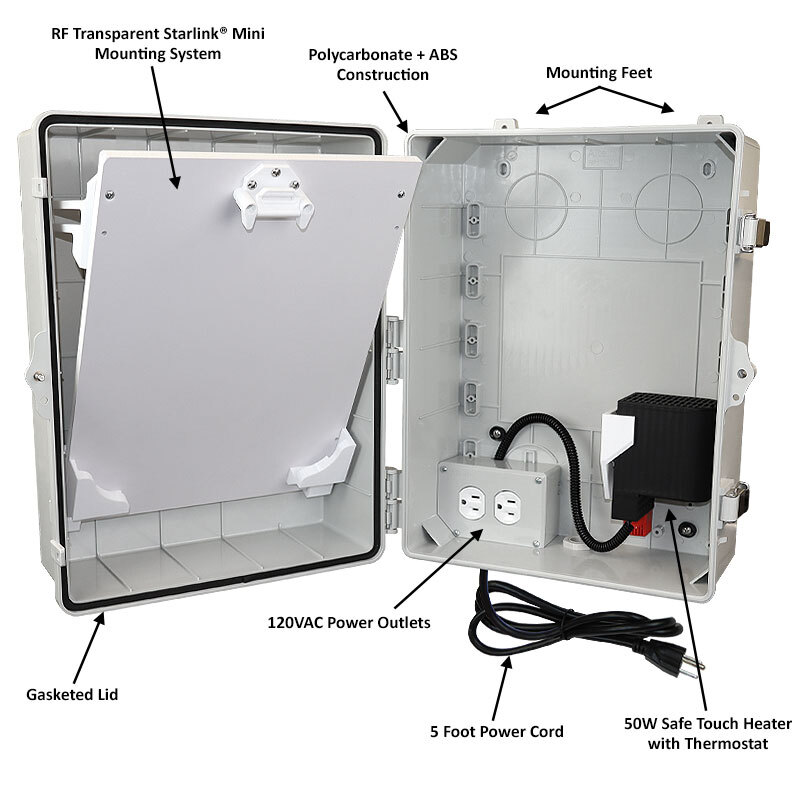

The NP17MA1C-STKM-AIM provides easy plug-n-play installation. This enclosure features (2) pre-wired 120VAC power outlets. Once the Starlink® Mini is installed inside the enclosure, simply plug the pre-wired 5 foot power cord into an power outlet.

For cold weather environments this enclosure is also available with a 50W thermostat-controlled heater. The heater turns on when the internal temperature reaches 41°F (5°C) and turns off when it rises to 59°F (15°C). The heater is mounted in the base of the enclosure and is wired internally leaving the power outlets available for the Starlink® Mini.

Click Here to see these and all the available Starlink® enclosure models.

Starlink® is a trademark or registered trademark of Space Exploration Technologies Corp.
