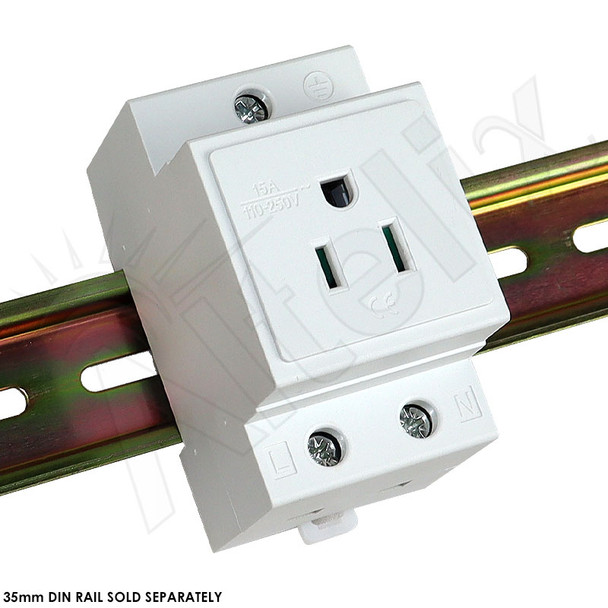

The Altelix NHR120-DIN is a DIN Rail Mountable USA 3 Prong Grounded 120VAC Power Receptacle. It is designed to easily provide power inside equipment enclosures or any application which DIN rails can be mounted. This 125VAC 15A receptacle features integral screw clamp terminal connections which helps simplify on-site wiring. The power connections are clearly marked on the receptacle.
The NHR120-DIN is designed to be easily attached to standard 35mm Top Hat DIN Rail.
Technical Specifications
| Number of Outlets | 1 |
| Voltage Rating | 125 VAC |
| Current Rating | 15A |
| Power Terminal Connections | Ground / Line / Neutral |
| Mounting | 35mm DIN Rail |
| Terminal Wire Gauge Range | 18-2 AWG |
| Terminal Block Wire Strip Length | 6-7mm |
| Dimensions (W x L x D) | 1.7 x 3.0 x 2.5 In. (44.4 x 76.2 x 63.5 mm) |
