Description

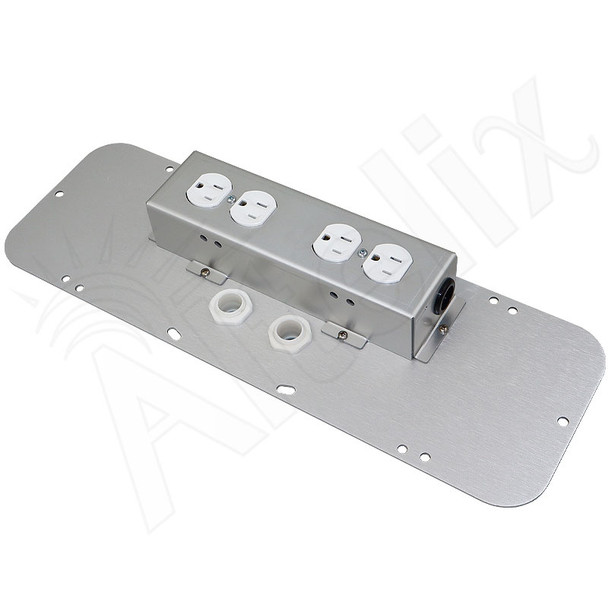

The Altelix NHM20A-A1 Power Module with 120VAC Outlets is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This power module is a direct replacement for the steel access panel included with the NS and NX enclosures.
Power Module
Ideal for installations that require hard-wiring for power, the NHM20A-A1 features two pre-wired duplex 120VAC power outlets (4 outlets total) which are easily removable for wiring. The panel is constructed from 0.10" (2.5mm) thick aluminum. A 1/2" Liquid-Tight conduit fitting is pre-installed in the panel. A PG16 cable gland is also provided for use with standard size power cables. Two sealed PG16 cable glands are also pre-installed to accommodate any required wiring such as data cables.
The NHM20A-A1 is for use with the following enclosures:
- NS242012 Series
- NS242412 Series
- NS242416 Series
- NX242416 Series
- NS242424 Series
- NS282416 Series
- NS282424 Series
- NS322416 Series
Available with Power Cord
This power module is also available with a pre-installed 5 foot 3-prong power cord. See NHM20A-A1C.
Technical Specifications
| Panel Material | Aluminum |
| Panel Thickness | 0.10 in. (2.5 mm) |
| Voltage | 120VAC |
| Hole Diameter for PG16 Cable Gland | 0.875 in. (22.2 mm) |
| Sealed Cable Gland - Cable Diameter Range* | 0.1" to 0.3" (2.5 to 7.6mm) |
| Max. Connector Size That Can Pass Through Sealed Cable Gland | 0.5" (12.7mm) Wide |
| *Note: For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland. |
