The Altelix NHF060A1-KIT is the all-in-one solution for adding thermostat controlled cooling fans to existing equipment racks and enclosures.
No Wiring Needed

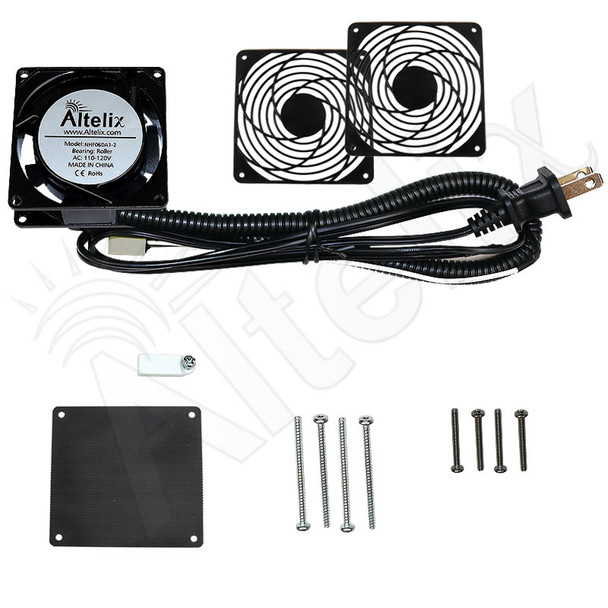

The power cord included with this kit features a pre-wired thermostat as well as a 120VAC power plug so no additional wiring is needed. Simply plug the power cord into the fan and then into a free 120VAC outlet. A clip is provided to attach the thermostat to a equipment mounting plate or other surface. This kit includes:
- (1) 60x60x30mm 120VAC cooling fan with pre-wired power cord and pre-wired thermostat
- (1) Thermostat mounting clip
- (2) Finger guards
- (1) Fan screen
- (4) #6 Torx head mounting screws
Direct Replacement for Altelix Enclosures
This 120VAC cooling fan kit is also a direct replacement for the stock cooling fans included with the following enclosures as well as retrofit vented enclosures without cooling fans:
- NP120905 series
- NP120907 series
- NP120909 series
Altelix Space Saver 19" Equipment Rack
This kit can also be used with the Altelix NHBS-RACK-NF1620-CR 19" Space Saver equipment rack. Click Here for more information.
Additional Fan Kits Available
This kit is also available with a 120x120x38mm cooling fan (see NHF120A1-KIT) or a 80x80x25mm cooling fan (see NHF080A1-KIT).
Technical Specifications
| Voltage | 120VAC |
| Wattage | 4W |
| CFM | 9.1 |
| Dimensions (LxWxD) | 60 x 60 x 30mm |
| Thermostat Specifications | |
| Cooling Fan Turn-On Temperature | 100°F (38°C) ±6°F |
| Cooling Fan Turn-Off Temperature | 79°F (26°C) ±9°F |
