Description
The Altelix NHM20A-A1R2C-H6 120VAC Power Module is designed for use with compatible Altelix NS painted steel and NX stainless steel NEMA enclosures. This power module is a direct replacement for the steel access panel included with these enclosures.
Power Module

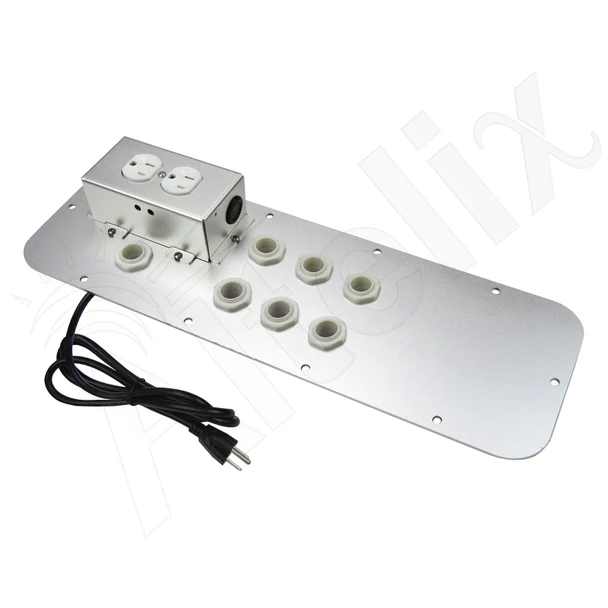

Constructed from 0.10" (2.5mm) thick aluminum, the power module includes a single duplex 120VAC receptacle with two outlets and six cable glands for routing cables into the enclosure. The receptacle is pre-wired with a 5-foot power cord, so no additional wiring is required.
The NHM20A-A1R2C is compatible with the following Altelix enclosures:
- NF162012
- NFC403214 Series
- NFC483214 Series
- NS242012
- NS242412
- NS242416
- NX242416
- NS242424
- NS282416
- NS282424
- NS322416
Technical Specifications
| Panel Material | Aluminum |
| Panel Thickness | 0.10 in. (2.5 mm) |
| Voltage | 120VAC |
| Power Outlets | (1) Duplex Receptacle - (2) 120VAC Outlets |
| Power Cord Length | 5 Feet (1.5m) |
| Number of Cable Glands | 6 |
| Hole Diameter for Cable Gland | 0.875 in. (22.2 mm) |
| Cable Gland - Cable Diameter Range* | 0.1" to 0.3" (2.5 to 7.6mm) |
| Max. Connector Size That Can Pass Through Cable Gland | 0.5" (12.7mm) Wide |
| Industry Certifications | UL / ETL |
*Note: For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland.
