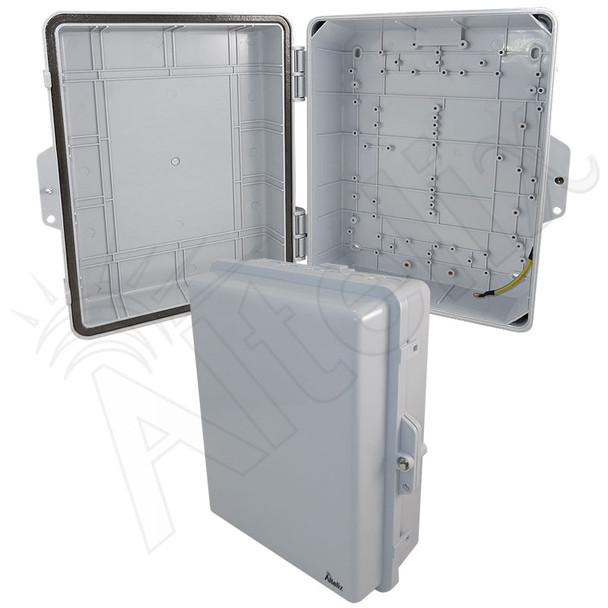

Altelix 14x11x5 PC + ABS Weatherproof Utility Box NEMA Enclosure with Hinged Door

SKU:
NP141105
Availability:
Same Day Shipping
  • Altelix 14x11x5 IP55 NEMA 3R PC+ABS Plastic Weatherproof Utility Enclosure with Hinged Door
  • Altelix 14x11x5 IP55 NEMA 3R PC+ABS Plastic Weatherproof Utility Enclosure with Hinged Door
  • Altelix 14x11x5 IP55 NEMA 3R PC+ABS Plastic Weatherproof Utility Enclosure with Hinged Door
  • Altelix 14x11x5 IP55 NEMA 3R PC+ABS Plastic Weatherproof Utility Enclosure with Hinged Door
  • Altelix 14x11x5 IP55 NEMA 3R PC+ABS Plastic Weatherproof Utility Enclosure with Hinged Door
  • Altelix 14x11x5 IP55 NEMA 3R PC+ABS Plastic Weatherproof Utility Enclosure with Hinged Door
  • Altelix 14x11x5 IP55 NEMA 3R PC+ABS Plastic Weatherproof Utility Enclosure with Hinged Door
  • Altelix 14x11x5 IP55 NEMA 3R PC+ABS Plastic Weatherproof Utility Enclosure with Hinged Door
Your Price: $49.99
  • Pole Mount Kit for NP141105 NEMA Enclosures
  • Altelix Pole Mount Kit for NP141105 NEMA Enclosures
  • Equipment Mounting Plate for NP141105 Enclosures
  • Key for NP Series Enclosures
For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Meets NEMA Type 3, 3X and IEC IP55
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS
  • RF Transparent for Wireless Devices
  • Gasketed Lid with Dual Latches
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • Includes Wall Mounting Hardware, Cable Grommets, Zip Ties, Cable Management Loops and, Ground Plate & Ground Wire
  • External Dimensions: 13.4 x 10.4 x 4.7 Inches (340 x 265 x 120 mm)
  • Internal Dimensions: 12.6 x 9.6 x 4.6 Inches (321 x 244 x 114 mm)
  • Knock-Out Holes on Top & Bottom
  • Optional Equipment Mounting Plates and Pole Mount Kits Available
Applications
  • Multi Purpose Plastic Utility Box
  • Data Wiring and Fiber Optic
  • Cable TV Connections
  • Broadband Equipment
  • Low Voltage Wiring Junction Box
  • Solar Equipment
  • Outdoor Speaker Wiring
  • LED Controllers
  • IoT Devices
  • WiFi and RFID Gear
  • Security and Surveillance Systems
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment


Weatherproof Polycarbonate + ABS Construction For Extreme Durability

The Altelix NP141105 PC+ABS Plastic Utility Enclosure is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring and small devices in harsh environments.

Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. Meets or exceeds NEMA Type 3, 3X and IEC IP55.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains wall anchors, zip ties, wire management loops, grounding plate and ground wire, door locking key and more.

Pole Mount Available
Optional accessories including equipment mounting plates and pole mounting kits (NMK-0002) are also available for this enclosure.

Technical Specifications

Material Polycarbonate + ABS
Color Gray
Outer Dimensions 13.4 x 10.4 x 4.7 Inches
(340 x 265 x 120 mm)
Inner Dimensions 12.6 x 9.6 x 4.6 Inches
(321 x 244 x 114 mm)
Weight 2.8 lbs. (1.3 kg)
Ratings NEMA Type 3, 3X and IEC 529 IP55
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 0.78 in. (20 mm)
(4) 1.30 in. (33 mm)




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
