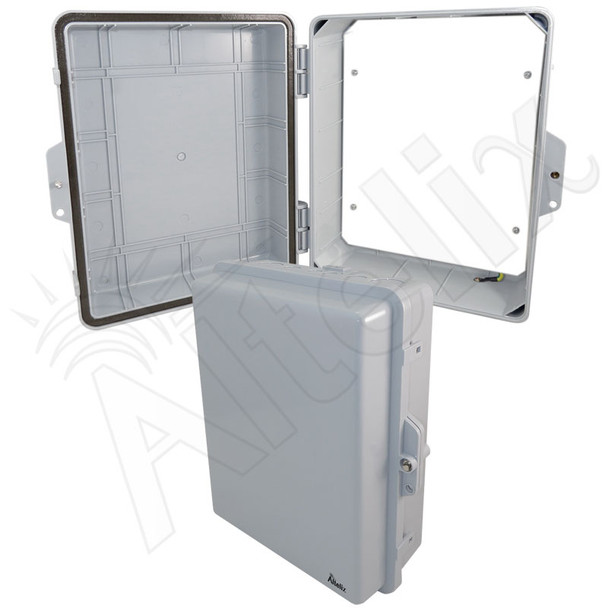

Altelix 14x11x5 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate

SKU:
NP141105MP-XX
Availability:
Same Day Shipping
  • Altelix 14x11x5 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Available Colors
  • Altelix 14x11x5 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • No-Drill PVC Equipment Mounting Plate
  • Altelix 14x11x5 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 14x11x5 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 14x11x5 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 14x11x5 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 14x11x5 Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Accessory Kit
  • Black PVC Equipment Mounting Plate Include with Black Enclosure
  • Scale Reference
Your Price: $107.99

Get simple modifications in only 3-5 days! Click to learn more.

For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Features a No-Drill PVC Non-Metallic Equipment Mounting Plate – Mount your equipment securely without the need for drilling!
  • Black Enclosures Now Include a Black PVC Equipment Mounting Plate
  • Meets NEMA Type 3, 3X and IEC IP55
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS
  • Available in Gray, Black, Light Ivory and OD Green
  • RF Transparent Enclosure
  • Gasketed Lid with Dual Latches
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • Includes Wall Mounting Hardware, Cable Grommets, Zip Ties, Cable Management Loops and, Ground Plate & Ground Wire
  • External Dimensions: 13.4 x 11.5 x 5.0 in. (340 x 293 x 127 mm)
  • Internal Dimensions: 12.0 x 8.0 x 3.8 in. (304 x 203 x 97 mm)
  • Knock-Out Holes on Top & Bottom
  • Optional Equipment Mounting Plates and Pole Mount Kits Available
Applications
  • WiFi and RFID Gear
  • IoT Devices
  • Broadband Equipment
  • Security and Surveillance Equipment
  • LED Controllers
  • Media Converters
  • Solar Equipment
  • Multi Purpose Plastic Utility Box
  • Data Wiring and Fiber Optic
  • Cable TV and CCTV Devices
  • Low Voltage Wiring Junction Box
  • Outdoor Speaker Wiring
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment



Extreme Weatherproof Protection with Non-Metallic PVC Equipment Mounting Plate

The Altelix NP141105MP PC+ABS NEMA Enclosure with Non-Metallic PVC Equipment Mounting Plate is an industrial quality weatherproof NEMA enclosure designed to offer extreme protection for small electronic devices outdoors and in harsh environments.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Construction and Features
These enclosures feature a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use.It meets or exceeds NEMA Type 3, 3X and IEC IP55. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

No-Drill Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design
The NP141105MP is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless points on the market.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains wall anchors, zip ties, wire management loops, grounding plate and ground wire, door locking key and more.

Pole Mount Available
An optional pole mounting kit is also available for this enclosure. See the accessory section above.

Technical Specifications

Material Polycarbonate + ABS
Available Colors Gray, Black, Light Ivory, OD Green
Outer Dimensions 13.4 x 11.5 x 5.0 Inches
(340 x 293 x 127 mm)
Inner Dimensions 12.0 x 8.0 x 3.8 Inches
(304 x 203 x 97 mm)
Mounting Plate Material 0.25 in. (6.4 mm) PVC
Mounting Plate Dimensions 9.0 x 11.7 In. (230 x 298 mm)
Weight 3.3 lbs. (1.5 kg)
Ratings NEMA Type 3, 3X, IP55
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 0.78 in. (20 mm)
(4) 1.30 in. (33 mm)
*Notes:
1) Interior dimensions represent maximum space available for equipment.




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
