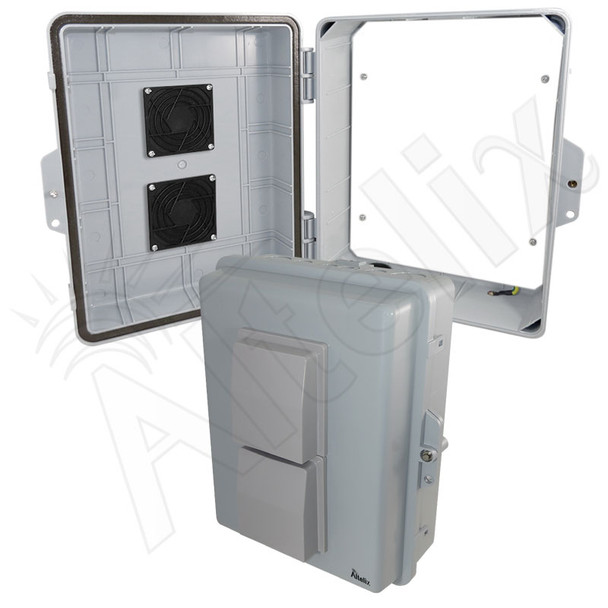

Altelix 14x11x5 Vented Polycarbonate + ABS RF Transparent Outdoor WiFi Enclosure with No-Drill PVC Equipment Mounting Plate

SKU:
NP141105TVMP
Availability:
Same Day Shipping
  • Altelix 14x11x5 Vented Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Available Colors
  • Altelix 14x11x5 Vented Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • No-Drill PVC Equipment Mounting Plate
  • Altelix 14x11x5 Vented Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 14x11x5 Vented Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 14x11x5 Vented Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 14x11x5 Vented Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Altelix 14x11x5 Vented Polycarbonate + ABS Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with PVC Non-Metallic Equipment Mounting Plate
  • Accessory Kit
  • Black PVC Equipment Mounting Plate Include with Black Enclosure
  • Scale Reference
Your Price: $114.99

Get simple modifications in only 5 days! Click to learn more.

For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Dual 3" Vents with Rain Shields to Expel Heat
  • ABS + Polycarbonate Enclosure
  • Features a No-Drill PVC Non-Metallic Equipment Mounting Plate – Mount your equipment securely without the need for drilling!
  • Black Enclosures Now Include a Black PVC Equipment Mounting Plate
  • Available in Gray, Black, Light Ivory and OD Green
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Wall Mount Hardware and Cable Grommets
  • Optional Pole Mount Kit Available
Applications
  • WiFi Access Points and Routers
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor Use of Indoor Equipment
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment



The Altelix NP141105VMP Vented Polycarbonate + ABS NEMA Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Construction and Features
This enclosure is IP24 rated and features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

No-Drill Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design
The NP141105VMP is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. In addition, mounting radios to PVC equipment mounting plate can be done simply by using self-tapping screws. The size of this enclosure will fit a wide range of popular wireless points on the market.

Ventilation
This enclosure features two 3.0 inch air vents. Rain shields help prevent rain water from entering the enclosure.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains wall anchors, zip ties, wire management loops, grounding plate and ground wire, door locking key and more.

Model Note:
The Gray enclosure (NP141105VMP) comes from the factory with two cable grommets and ground wire pre-installed. The other available colors do not have the cable grommets or ground wire installed but are included in the accessory kit.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material PC+ABS Polycarbonate / ABS Blend
Available Colors Gray, Black, Light Ivory, OD Green
Outer Dimensions 13.4 x 11.5 x 6.7 Inches
(340 x 293 x 159 mm)
Inner Dimensions* 12.0 x 8.0 x 3.8 Inches
(304 x 203 x 97 mm)
Mounting Plate Material 0.25 In. (6.4 mm) PVC
Mounting Plate Dimensions 9.0 x 11.7 In. (230 x 298 mm)
Weight 4.0 lbs. (1.7 kg)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 0.78 in. (20 mm)
(4) 1.30 in. (33 mm)
*Interior dimensions represent maximum space available for equipment.




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.



  Same Day Shipping - Click Here for details.



Availability:

Same Day Shipping

Product Note:
This enclosure is also available in our new 14x11x7 size. These enclosures feature a deeper size for more equipment space as well as multiple mounting options and stainless steel latches. They are currently available at the same cost as our 14x11x5 enclosures! Click Here to see our complete NP141107 enclosure line.



Need a pole mount kit, an extra set of enclosure keys or something else? Click on ADD TO CART below to see all the available accessories for this enclosure.
