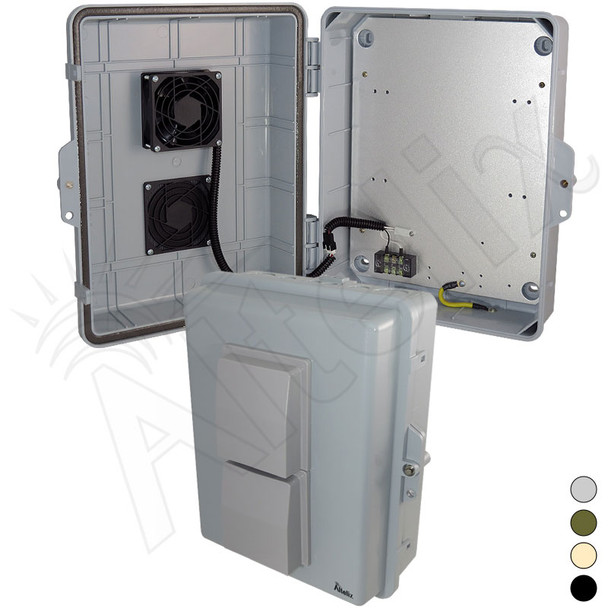

Altelix 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 24 VDC Cooling Fan

SKU:
NP141105TVFD2
Availability:
Usually Ships in 1 to 2 Business Days
  • Altelix 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 24 VDC Cooling Fan
  • Available Colors
  • Altelix 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 24 VDC Cooling Fan
  • Altelix 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 24 VDC Cooling Fan
  • Altelix 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 24 VDC Cooling Fan
  • Altelix 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 24 VDC Cooling Fan
  • Altelix 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 24 VDC Cooling Fan
  • Altelix 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 24 VDC Cooling Fan
  • Altelix 14x11x5 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with 24 VDC Cooling Fan
  • Accessory Kit
  • Optional SLA Battery Shelf
  • Scale Reference
Your Price: $219.99

Get simple modifications in only 5 days! Click to learn more.

For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • (2) 3" Vents with Rain Shields
  • Thermostat Controlled 24VDC Cooling Fan
  • 24VDC Terminal Strip
  • ABS + Polycarbonate Enclosure
  • Available in Gray, Black, Light Ivory and OD Green
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • Aluminum Equipment Mounting Plate
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Wall Mount Hardware and Cable Grommets
Applications
  • Solar Power Systems
  • Battery Back-Up Systems
  • Vehicle Powered Applications
  • 24VDC Power-over-Ethernet (PoE) Applications
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Concealment of Electronic Equipment



The Altelix NP141105VFD2 Vented Polycarbonate + ABS NEMA Weatherproof Enclosure with 24VDC Cooling Fan and Aluminum Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

DC Power Connections
This enclosure features a terminal strip and ground lug for simplified wiring on-site. The pre-installed PG16 cable gland is designed for use with a much wider range cable types and will seal against cable much thinner then a typical PG16 cable gland. Two cable grommets are also pre-installed. A PG9 cable gland and cable grommets are provided in the accessory kit for additional wiring requirements as well as knock-outs on the enclosure.

Cooling Fan Ventilation
The NP141105VFD2 features dual 3" vents and a thermostat controlled 24VDC cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds on the front door keep rain water from entering the enclosure. Dual fans are also available by request.

Aluminum Equipment Mounting Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

Available Colors
The standard NP141105VFD2 enclosure is available in gray. In addition the following optional colors are also available; Black, Green, Red and Tan. For inquiries on ordering one of these optional colors, please Contact Us.

Optional SLA Battery Shelf
The NHP-SLA-01 is an aluminum shelf designed for use with SLA type batteries. The shelf can be easily installed by drilling (4) holes in the equipment mounting plate. A drilling template is provided. The included strap secures the battery firmly on the shelf.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material PC+ABS Polycarbonate / ABS Blend
Available Colors Gray, Black, Light Ivory, OD Green
Voltage 24VDC
Cooling Fan Turn-On Temperature 100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature 79°F (26°C) ±9°F
Outer Dimensions
(Height x Width x Depth)
13.4 x 11.5 x 6.3 Inches
(340 x 293 x 160 mm)
Inner Dimensions*
(Height x Width x Depth)
8.5 x 8.0 x 3.2 Inches
(216 x 203 x 81 mm)
Mounting Plate Material 0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions 11.7 x 9.0 in. (298 x 230 mm)
Weight 5.4 lbs. (2.4 kg)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 0.78 in. (20 mm)
(4) 1.30 in. (33 mm)
*Interior dimensions represent maximum space available for equipment.




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.



Availability:

Usually Ships in 1 to 2 Business Days

Product Note:
This enclosure is also available in our new 14x11x7 size. These enclosures feature a deeper size for more equipment space as well as multiple mounting options and stainless steel latches. They are currently available at the same cost as our 14x11x5 enclosures! Click Here to see our complete NP141107 enclosure line.



Need a pole mount kit, an extra set of enclosure keys or something else? Click on ADD TO CART below to see all the available accessories for this enclosure.
