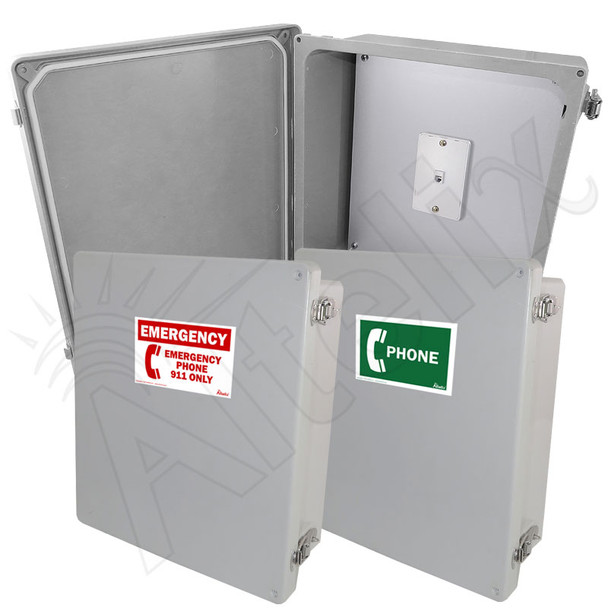

Altelix 14x12x6 Fiberglass Outdoor Weatherproof NEMA 4X Phone Call Box with Emergency Phone or Service Phone Label

The Altelix NF141206-T01 Series Outdoor Weatherproof Phone Call Box is ideal for deploying emergency or service telephones in outdoor locations and harsh environments. This rugged NEMA 4X enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a stainless steel continuous door hinge and stainless steel latches with provision for padlocks. The door is fully gasketed making this enclosure suitable for use in dusty and wet areas. This model features a finished aluminum mounting plate and a wall mount RJ11 jack.

This rugged dustproof and waterproof telephone enclosure is ideal for commercial applications including public pool decks, parking garages, resort properties, marinas, golf courses and public areas. Industrial uses include tunnels and mining, railway and subway stations, refineries, cement and chemical plants, treatment facilities and loading docks.

Available with Emergency Phone Label or Service Phone Label
The TBS12 is available with either a red and white Emergency Phone label or a green and white Service Phone label. These weatherproof UV resistant labels are pre-installed on the door.

Weatherproof Cable Gland works with Terminated Cables
The unique cable gland included with this enclosure is designed to allow pre-terminated telephone cables to be inserted into the phone box. Once tightened, the cable gland seals around the cable preventing water from entering the box.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.

Customization
This enclosure is one of many standard models available. Our lineup includes enclosures optimized for WiFi equipment, DIN Mount Industrial Controls, Telephones, Security & Safety Equipment, Building & Home Automation and More.

We offer numerous standard models and options including additional equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material	Fiberglass Reinforced Polyester
Color	Gray
Outer Dimensions	15.7 x 13.8 x 6.5 Inches (401 x 352 x 165 mm)
Inner Dimensions*	13.0 x 11.0 x 4.9 Inches (330 x 279 x 124 mm)
Weight	10.2 lbs. (4.6 kg)
Ratings	NEMA Type 4, 4X / IP66
Flame Rating	UL94-5V
Industry Certifications	CE

*Notes: 1) Enclosure openings must be properly sealed with supplied plugs to maintain NEMA Type 4, 4X / IP66 rating. 2) Interior dimensions represent maximum space available for equipment.

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
