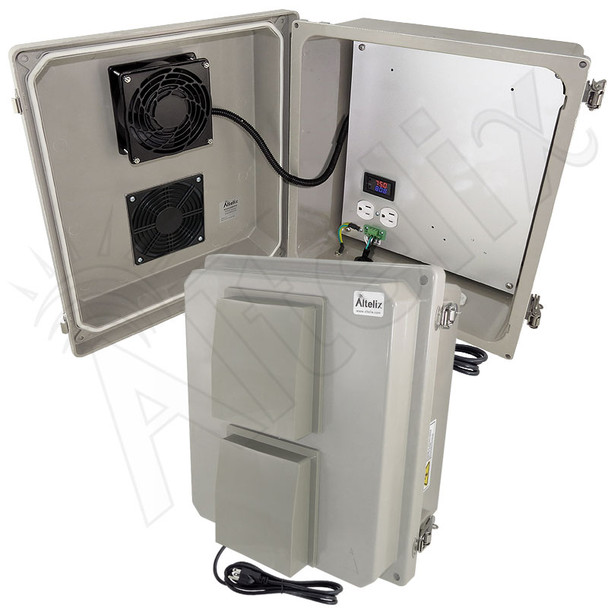

Fan Cooled Vented Enclosure with Plug and Play Power for Rapid Deployment
The Altelix NF141208VFA1C-DF Fan Cooled Vented NEMA Enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features two pre-wired 120VAC power outlets for your equipment.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.
Cooling Fan with Programmable Digital Temperature Controller
This enclosure features two 4" vents and a cooling fan which helps maintain lower internal temperatures. The operation of the cooling fan can be controlled by the programmable digital temperature controller accessible inside the enclosure.The fan can be programmed to turn on and off within a set temperature range set by the user. The controller features a color digital readout and can be programmed for Fahrenheit or Celsius. Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all of the power outlets available for installed equipment.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.
Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.
Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
Technical Specifications
| Material | Fiberglass Reinforced Polyester |
| Color | Gray |
| Voltage | 120VAC |
| Max Load | 10A @ 120VAC |
| Digital Controller Operational Temperature Range | 14°F (-10°C) to 120°F (60°C) |
| Outer Dimensions | 15.7 x 13.8 x 10.1 Inches (401 x 352 x 258 mm) |
| Inner Dimensions* | 13.0 x 11.0 x 5.0 Inches (330 x 279 x 127 mm) |
| Mounting Plate Material | 0.10 in (2.5 mm) Aluminum |
| Mounting Plate Dimensions | 10.9 x 12.8 in. (276 x 324 mm) |
| Weight | 12.4 lbs. (5.6 kg) |
| Power Cord Length | 5 Feet (1.5m) |
| Terminal Block Wire Range | 12-18 AWG |
| Terminal Block Wire Strip Length | 6-7mm |
| Ratings | NEMA Type 3R, 3RX / IP24 |
| Flame Rating | UL94-5V |
| *See drawing for detailed dimensions of maximum space available for equipment. |
 | NEMA Ratings and IP Equivalency Chart |
