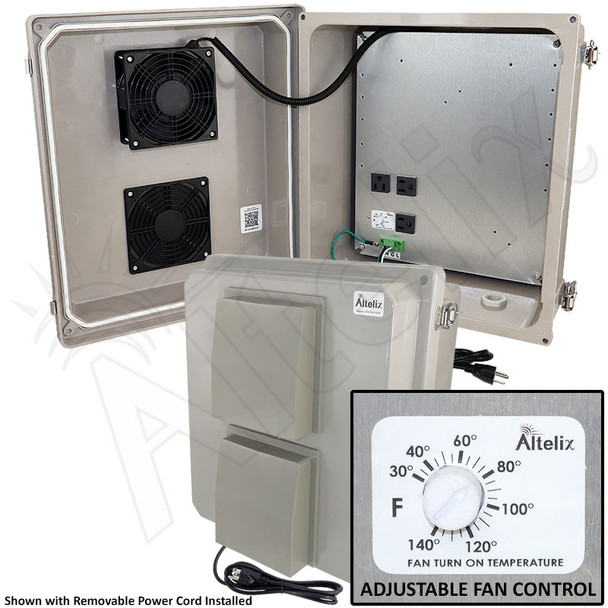

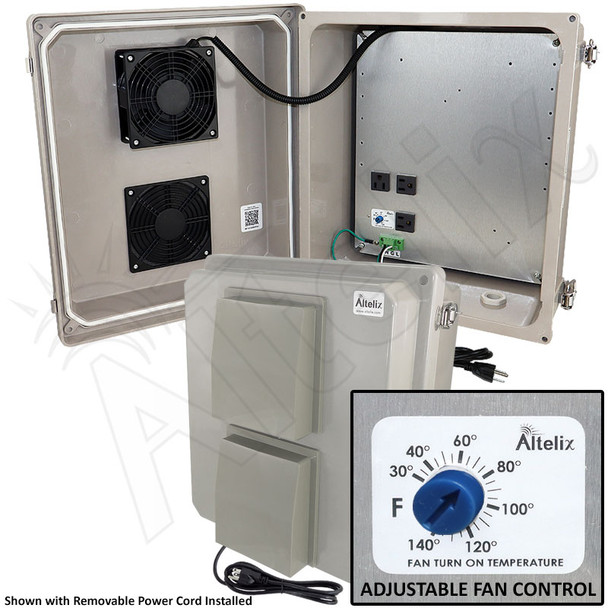

Altelix 14x12x8 Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan, 120 VAC Outlets & Power Cord
- Same Day Shipping
For customization and volume pricing inquiries please Click Here to email us at email@example.com
Fan Cooled Vented Enclosure with Plug and Play Power for Rapid Deployment
The Altelix NF141208VFA1C Fan Cooled Vented NEMA Enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets for your equipment.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.
Fan Cooling with Thermostat Control
This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all 4 power outlets available for installed equipment.
Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.
Larger Size Available
For applications requiring additional interior space, this enclosure is also available in a larger size. The NF141210VFA1C 14x12x10 enclosure features an extra deep extended lid for increased equipment clearance. Click Here for more information.
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
|Material||Fiberglass Reinforced Polyester|
|Max Load||10A @ 120VAC|
|Cooling Fan Turn-On Temperature||100°F (38°C) ±6°F|
|Cooling Fan Turn-Off Temperature||79°F (26°C) ±9°F|
|Outer Dimensions||15.7 x 13.8 x 10.1 Inches
(401 x 352 x 258 mm)
|Inner Dimensions*||13.0 x 11.0 x 5.0 Inches
(330 x 279 x 127 mm)
|Mounting Plate Material||0.10 in (2.5 mm) Aluminum|
|Mounting Plate Dimensions||10.9 x 12.8 in. (276 x 324 mm)|
|Weight||12.4 lbs. (5.6 kg)|
|Power Cord Length||5 Feet (1.5m)|
|Terminal Block Wire Range||12-18 AWG|
|Terminal Block Wire Strip Length||6-7mm|
|Ratings||NEMA Type 3R, 3RX / IP24|
|*See drawing for detailed dimensions of maximum space available for equipment.|
NEMA Ratings and IP Equivalency Chart
Need a pole mount kit or DIN rails? Click on ADD TO CART below to see all the available accessories for this enclosure.
