Altelix 14x12x8 Fiberglass Weatherproof Vented NEMA Enclosure with Adjustable Cooling Fan, 120 VAC Outlets & Power Cord

Fan Cooled Vented Enclosure with Plug and Play Power for Rapid Deployment

The Altelix NF141208VFA1C-A Fan Cooled Vented NEMA Enclosure is designed for demanding environments and mission-critical applications. It delivers enhanced functionality, smarter cooling, and greater installation flexibility—making it the ideal choice for professionals in telecom, networking, and industrial control.

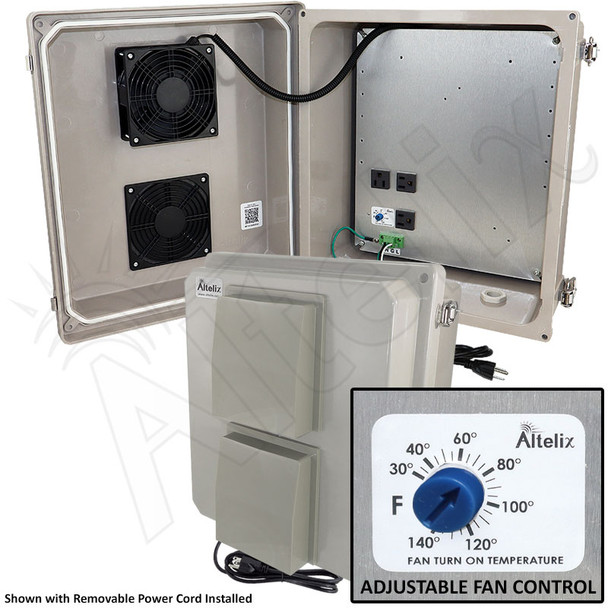

Precision Cooling with Adjustable Fan Control
This enclosure features an adjustable fan control now located directly on the equipment mounting plate. This intuitive feature allows the user to manually set the cooling fan’s turn-on temperature from 30°F (-1°C) to 140°F (30°C), giving precise control over thermal management based on specific equipment needs. Whether you're housing sensitive electronics or high-power devices, this smart cooling solution helps extend equipment life and maintain optimal performance. Rain shrouds located on the lid of the enclosure keep rain water from entering while allowing ventilation for installed equipment. The cooling fan is wired internally, leaving all 3 power outlets available for installed equipment.

Simplified Power Integration
For permanent installations which require hard wiring of the power the enclosure features a pre-installed ¾" liquid-tight conduit fitting, ensuring a secure and weather-resistant connection. A removable terminal block inside the enclosure simplifies on-site wiring. Also included is a 5-foot, 3-prong power cord, which is pre-terminated with a terminal block connector. This allows for easy attachment to the internal power terminal block, streamlining setup and making power integration both flexible and efficient.

Flexible Power Outlet Configuration
Inside the enclosure, you'll find three pre-wired power outlets mounted on the equipment mounting plate—but with a twist. These outlets are rotatable, making it easy to accommodate plug-in power supplies of various shapes and sizes. This small but powerful feature helps eliminate cable clutter and improves accessibility during setup and maintenance.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

Equipment Mounting Plate - Utility Shelf Ready
This enclosure includes an equipment mounting plate that can be easily drilled and modified by the installer to suit unique site requirements. This plate is also pre-drilled to for use with Altelix DNT-S series utility shelf. The enclosure can be purchased with or without the shelf. See the accessories section to purchase additional shelves.

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.

Larger Size Available
For applications requiring additional interior space, this enclosure is also available in a larger size. The NF141210VFA1C-A 14x12x10 enclosure features an extra deep extended lid for increased equipment clearance. Click Here for more information.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material	Fiberglass Reinforced Polyester
Color	Gray
Voltage	120VAC
Max Load	10A @ 120VAC
Cooling Fan Turn-On Temperature Range	30°F (-1°C) to 140°F (60°C)
Outer Dimensions	15.7 x 13.8 x 10.1 Inches (401 x 352 x 258 mm)
Inner Dimensions*	13.0 x 11.0 x 5.0 Inches (330 x 279 x 127 mm)
Equipment Mounting Plate Material	0.10 in (2.5 mm) Aluminum
Mounting Plate Dimensions	10.9 x 12.8 in. (276 x 324 mm)
Weight	12.4 lbs. (5.6 kg)
Power Cord Length	5 Feet (1.5m)
Terminal Block Wire Range	12-18 AWG
Terminal Block Wire Strip Length	6-7mm
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	UL94-5V

*See drawing for detailed dimensions of maximum space available for equipment.

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
