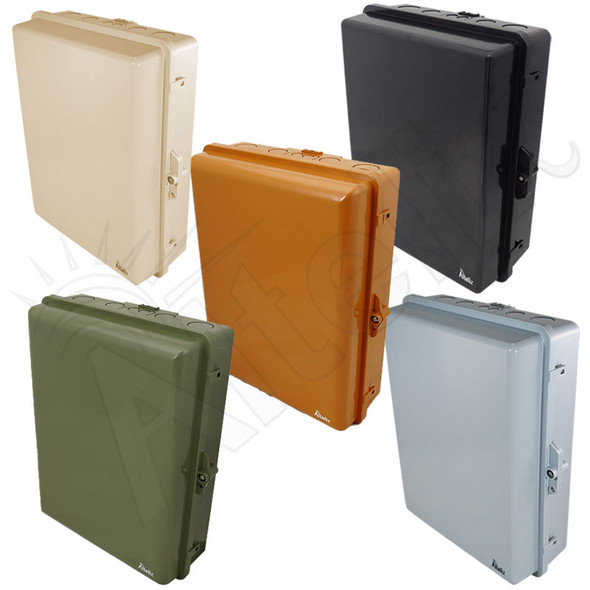

Altelix 17x14x6 PC + ABS Weatherproof Utility Box NEMA Enclosure with Hinged Door

SKU:
NP171406
Availability:
Same Day Shipping
On Sale
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof NEMA Enclosure
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof NEMA Enclosure
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof NEMA Enclosure
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof NEMA Enclosure
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof NEMA Enclosure
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof NEMA Enclosure
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof NEMA Enclosure
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof NEMA Enclosure
  • Altelix 17x14x6 Inch Polycarbonate + ABS Weatherproof NEMA Enclosure
Now: $74.99
List Price: $79.99
  • Altelix Pole Mount Kit for NP171406 NEMA Enclosures
  • Pole Mount Kit for NP171406 NEMA Enclosures
  • Equipment Mounting Plate for NP171406 Enclosures
  • Key for NP Series Enclosures
For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Meets NEMA Type 3, 3X and IEC IP55
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS
  • RF Transparent for Wireless Devices
  • Gasketed Lid with Dual Latches
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • Includes Wall Mounting Hardware, Cable Grommets, Zip Ties, Cable Management Loops and, Ground Plate & Ground Wire
  • External Dimensions: 16.5 x 12.5 x 5.3 Inches (420 x 320 x 133 mm)
  • Internal Dimensions: 15.7 x 11.8 x 4.8 Inches (399 x 300 x 120 mm)
  • Knock-Out Holes on Top & Bottom
  • Optional Equipment Mounting Plates and Pole Mount Kits Available
Applications
  • Multi Purpose Plastic Utility Box
  • Data Wiring and Fiber Optic
  • Cable TV Connections
  • Broadband Equipment
  • Low Voltage Wiring Junction Box
  • Solar Equipment
  • Outdoor Speaker Wiring
  • LED Controllers
  • IoT Devices
  • WiFi and RFID Gear
  • Security and Surveillance Systems
  • SCADA Remote Terminal
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment
  • Home Automation

Weatherproof Polycarbonate + ABS Construction For Extreme Durability

The Altelix NP171406 PC+ABS Plastic Utility Enclosure is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring and small devices in harsh environments.

Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. Meets or exceeds NEMA Type 3, 3X and IEC IP55.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains wall anchors, zip ties, wire management loops, grounding plate and ground wire, door locking key and more.

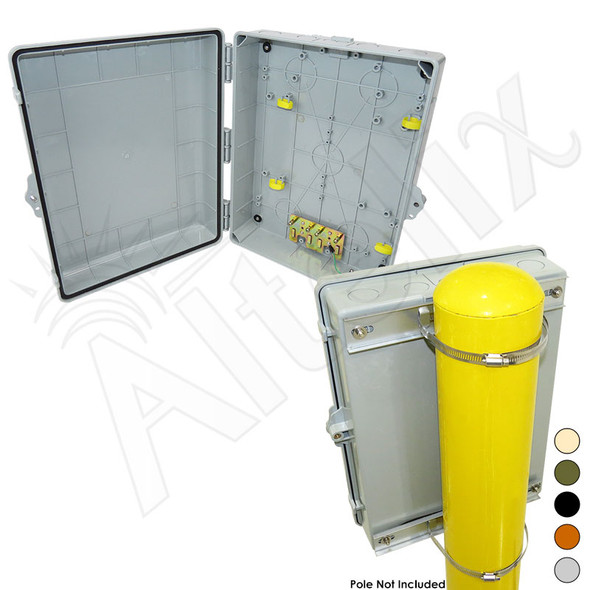

Pole Mount Available
Optional accessories including equipment mounting plates and pole mounting kits (NMK-0001) are also available for this enclosure.

Technical Specifications

Material Polycarbonate + ABS
Color Gray
Outer Dimensions 16.5 x 12.5 x 5.3 Inches
(420 x 320 x 133 mm)
Inner Dimensions 15.7 x 11.8 x 4.8 Inches
(399 x 300 x 120 mm)
Weight 4.1 lbs. (1.9 kg)
Ratings NEMA Type 3, 3X / IP55
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 1.02 in. (26 mm)
(4) 1.30 in. (33 mm)


NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
