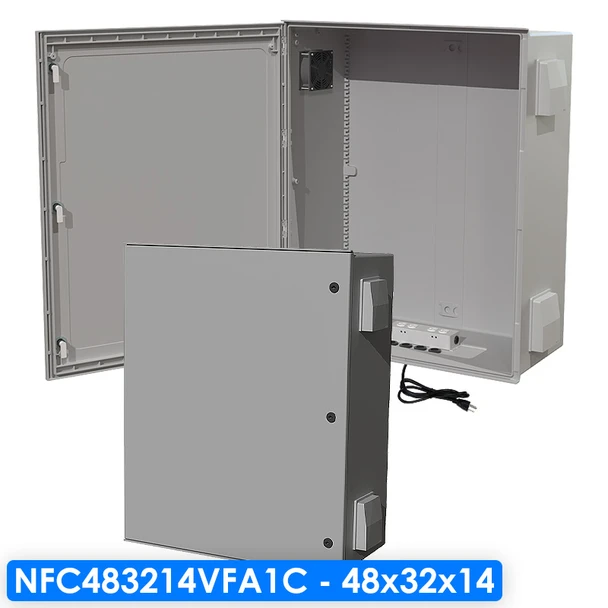

Altelix 48x32x14 Vented Fan-Cooled Fiberglass NEMA Weatherproof Enclosure with 120VAC Outlets & Power Cord

Altelix 48x32x14 Vented Fan-Cooled Fiberglass NEMA Weatherproof Enclosure with 120VAC Outlets & Power Cord

The Altelix 48x32x12 Vented Fan-Cooled Fiberglass NEMA Enclosures provide space for large equipment, multi-device installations, power and battery systems, and complex wiring layouts. These enclosures include 120VAC power for installed equipment and are available with two or four cooling fans to provide active airflow throughout the enclosure.

Removable Power Module
The NS242416LVA1C features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.

Active Cooling
These enclosures are available with two or four cooling fans to provide active airflow for installed equipment. The fan-cooled design helps circulate air throughout the enclosure and remove heat generated by installed electronics and other equipment.

Integral T-Slot Nut Mounting System
Molded-in mounting slots run from top to bottom of the enclosure and accept T-Slot Nuts for installing equipment mounting plates and other equipment without drilling or modifying the enclosure. See the specification sheet in the Downloads section for the recommended T-Slot Nut size.

Available Configurations
Available configurations include two or four cooling fans, with or without a blank galvanized steel equipment mounting plate.

Optional Lockable Latches
Three optional lockable latch sets are available as direct replacements for the standard quarter-turn latches. The HN-0005 is a keyed lock set with two keys. The HN-0001 traps the key in the unlocked position. The HN-0006 accepts a padlock (not included).

Customization
This enclosure is one of many standard models available. Our lineup includes enclosures for WiFi equipment, DIN Mount Industrial Controls, POTS Telephones, IP Phones, Device Charging Stations, Security & Safety Equipment, Building & Home Automation and more.

Available options include equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters. We also offer customization, engineering and on-site CNC machining of enclosures and associated equipment. Please contact us with your requirements.

Technical Specifications

Model Number	NFC483214VFA1C	NFC483214VPFA1C	NFC483214V4FA1C	NFC483214VP4FA1C
Enclosure Material	Fiberglass Reinforced Polyester	Fiberglass Reinforced Polyester	Fiberglass Reinforced Polyester	Fiberglass Reinforced Polyester
Color	Light Gray	Light Gray	Light Gray	Light Gray
Voltage	120VAC	120VAC	120VAC	120VAC
Max Load	10A @ 120VAC	10A @ 120VAC	10A @ 120VAC	10A @ 120VAC
Power Cord Length	5 Feet (1.5m)	5 Feet (1.5m)	5 Feet (1.5m)	5 Feet (1.5m)
Number of Cooling Fans	2	2	4	4
Cooling Fan Turn-On Temperature	100°F (38°C) ±6°F	100°F (38°C) ±6°F	100°F (38°C) ±6°F	100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature	79°F (26°C) ±9°F	79°F (26°C) ±9°F	79°F (26°C) ±9°F	79°F (26°C) ±9°F
Outer Dimensions (H x W x D)	47.5 x 34.8 x 13.9 Inches (1206.5 x 884 x 354.2 mm)	47.5 x 34.8 x 13.9 Inches (1206.5 x 884 x 354.2 mm)	47.5 x 34.8 x 13.9 Inches (1206.5 x 884 x 354.2 mm)	47.5 x 34.8 x 13.9 Inches (1206.5 x 884 x 354.2 mm)
Inner Dimensions (H x W x D)	45.0 x 29.1 x 12.8 Inches (1168.4 x 740 x 327 mm)	45.0 x 29.1 x 12.8 Inches (1168.4 x 740 x 327 mm)	45.0 x 29.1 x 12.8 Inches (1168.4 x 740 x 327 mm)	45.0 x 29.1 x 12.8 Inches (1168.4 x 740 x 327 mm)
Equipment Plate Material	N/A	16 Gauge Galvanized Steel	N/A	16 Gauge Galvanized Steel
Equipment Plate Dimensions (W x H)	N/A	28.7 x 44.70 Inches (730.2 x 1135.38 mm)	N/A	28.7 x 44.70 Inches (730.2 x 1135.38 mm)
DIN Rail Length	N/A	N/A	N/A	N/A
DIN Rail Material	N/A	N/A	N/A	N/A
Weight	88 lbs. (39.9 kg)	111 lbs. (50.4 kg)	90 lbs. (40.9 kg)	113 lbs. (51.3 kg)
Ratings	NEMA Type 3R, 3RX / IP24	NEMA Type 3R, 3RX / IP24	NEMA Type 3R, 3RX / IP24	NEMA Type 3R, 3RX / IP24
Industry Certifications	CE	CE	CE	CE

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
