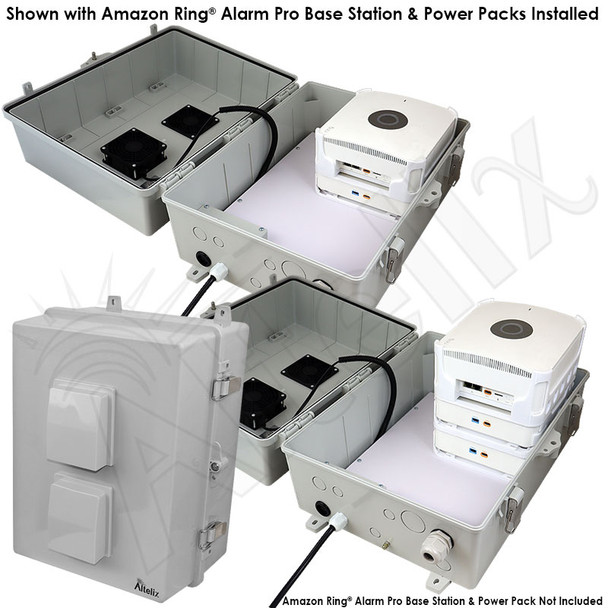

Altelix Amazon Ring® Alarm Pro Enclosure for use with the Amazon Ring® Alarm Pro and Amazon Ring® Power Packs featuring Cooling Fan and 120VAC Power

Protection from Theft and Tampering

The Altelix Ring Alarm Pro Base Station Enclosure is a vented fan cooled weatherproof enclosure designed to provide added security from vandalism and protection from harsh environments, while allowing ventilation for the Amazon Ring® Alarm Pro Base Station and stackable Power Packs.

Stackable Power Packs for Extended Battery Life
This enclosure is ideal for applications that require extended battery backup in the event of a power loss. Our unique modular mounting system allows one or two Ring® Power Packs to be stacked inside the enclosure under the mount for the Ring® Alarm Pro Base Station.

Plug and Play Setup
This enclosure features an innovative modular mounting system for installing both the Amazon Ring® Alarm Pro Base Station and Power Packs. No tools are required to install both devices in the enclosure. Once the enclosure is mounted, install the Alarm Pro Base Station and required Power Packs. Tabs on the Alarm Pro Base Station mount make it easy to remove for servicing. A pre-installed cable gland allows the Ring power supply to be connected to the Ring® Power Pack.

RF Transparent Design
The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the wireless signal range or coverage pattern of the Amazon Ring® Alarm Pro Base Station.

Cooling Fan Ventilation
The NP17VMFA1C-RAL2 features two vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.

120VAC Power
The NP17VMFA1C-RAL2 is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment. This enclosure can be transitioned to hard-wired later if needed. The power cord can be removed and the power receptacle can be hard-wired by a qualified installer.

Secure Your Equipment
This enclosure features dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Ring® is a trademark or registered trademark of Amazon Technologies, Inc.

Technical Specifications

Material	FPC+ABS Polycarbonate / ABS Blend
Color	Gray
Voltage	120VAC
Max. Load	10A @ 120VAC
Cooling Fan Turn-On Temperature	100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature	79°F (26°C) ±9°F
Outer Dimensions	17.1 x 13.6 x 10.5 Inches (435 x 347 x 266 mm)
Inner Dimensions	11.8 x 9 x 6.9 Inches (299 x 228 x 175 mm)
Mounting Plate Material	0.40 in. (10mm) PVC
Weight	8.9 lbs. (4.0 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	UL94-V0
Industry Certifications	CE
Compatible Ring® Models	Amazon Ring® Alarm Pro Base Station (Model 5AT3T3) Amazon Ring® Power Pack (Model 5C28S2)

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
