Protection from Theft and Tampering
The Altelix Ring Alarm Pro Base Station Enclosure is a vented weatherproof enclosure designed to provide added security from vandalism and protection from harsh environments, while allowing ventilation for the Amazon Ring® Alarm Pro Base Station. It features two 3" inch air vents with rain shields and screens.
Plug and Play Setup
This Altelix enclosure provides easy plug-n-play installation. Once the enclosure is mounted, install Amazon Ring® Alarm Pro Base Station into the mounting cradle and plug its power supply into the pre-wired 120VAC power outlet. Then plug the enclosure's 5 foot power cord into a 120VAC power outlet and you are up and running.
RF Transparent Design
The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the wireless signal range or coverage pattern of the Amazon Ring® Alarm Pro Base Station.
Rugged Polycarbonate + ABS Construction
This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.
Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more. A pre-installed cable grommet is available if any additional cables need to be installed in the enclosure.
Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
Ring® is a trademark or registered trademark of Amazon Technologies, Inc.
Technical Specifications
Material | Polycarbonate + ABS |

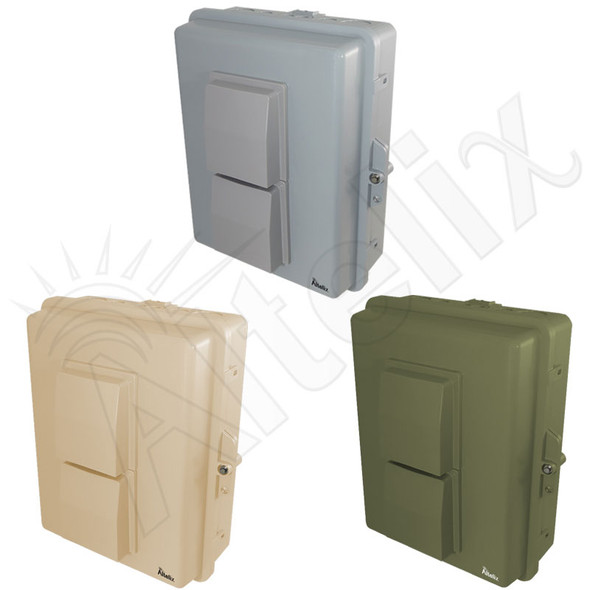

Available Colors | Gray, Black, Light Ivory, OD Green |
Voltage | 120VAC |
Max Load | 10A @ 120VAC |
Outer Dimensions (Height x Width x Depth) | 13.4 x 11.5 x 6.3 Inches (340 x 293 x 160 mm) |
Inner Dimensions (Height x Width x Depth) | 9.5 x 8.0 x 3.8 Inches (241 x 203 x 98 mm) |
Mounting Plate Material | 0.25 in. (6.4mm) PVC |
Weight | 4.1 lbs. (1.8 kg) |
Power Cord Length | 5 Feet (1.5m) |
Ratings | NEMA Type 3R, 3RX / IP24 |
Flame Rating | Meets UL94-V0 |
Compatible Ring® Model | Amazon Ring® Alarm Pro Base Station (Model 5AT3T3) |
NEMA Ratings and IP Equivalency Chart |
Need a pole mount kit, an extra set of enclosure keys or something else? Click the ADD-ONS and ACCESSORIES button below to see all the available accessories for this enclosure.
