The Altelix Single Cable Glands are designed to provide secure and reliable cable entry for electrical, networking, industrial, and outdoor enclosure applications. Their compression sealing design creates a tight seal around the cable to help protect against moisture, dust, and environmental contaminants.
Built for demanding indoor and outdoor environments, these cable glands provide IP68 waterproof protection while also delivering dependable cable retention and strain relief. They support a wide range of cable diameters and are ideal for use in weatherproof enclosures, communication systems, control panels, and equipment cabinets.
Each cable gland assembly includes a Sealing Nut, Inner Seal, Main Body, and Lock Nut for secure installation and long-term durability.
Additional Gable Glands
Altelix also has available sealed cable glands. These glands feature a unique closed-end inner membrane designed to maintain a secure water-tight seal when enclosure ports are not in use. When cable installation is required, the membrane can be easily punctured to allow cable routing while maintaining a tight environmental seal around the cable. Also available are our multi-port cable glands. These allow 4-5 pre-terminated cables to be put through a single gland. Click Here for more information and sizes available.
Technical Specifications

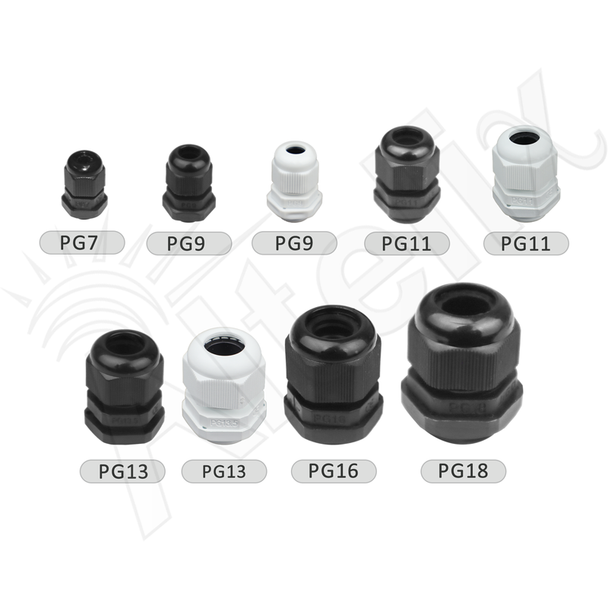

| Model Number | PG7 - Black | PG9 - Gray/Black | PG11 - Gray/Black | PG13 - Gray/Black | PG16 - Black | PG18 - Black |
| Color | Black | Gray/Black | Gray/Black | Gray/Black | Black | Black |
| Cable Gland Type | PG7 - Single Cable | PG9 - Single Cable | PG11 - Single Cable | PG13 - Single Cable | PG16 - Single Cable | PG18 - Single Cable |
| Required Hole Size | 0.50" (12.5mm) Dia. | 0.60" (15mm) Dia. | 0.72" (18.5mm) Dia. | 0.80" (20.5mm) Dia. | 0.90" (22.5mm) Dia. | 0.94" (24mm) Dia. |
| Cable Diameter Range | 0.12" to 0.25" (3.0 to 6.5mm) Dia. | 0.16" to 0.32" (4.0 to 8.0mm) Dia. | 0.20" to 0.40" (5.0 to 10mm) Dia. | 0.24" to 0.5" (6.0 to 12.0mm) Dia. | 0.40" to 0.55" (10 to 14mm) Dia. | 0.43" to 0.60" (11 to 15mm) Dia. |
| Maximum Connector Width That Can Pass Through Gland | 0.23" (6.0mm) | 0.31" (8.0mm) | 0.40" (10mm) | 0.47" (12mm) | 0.51" (13mm) | 0.60" (15mm) |
| Waterproof Rating | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
