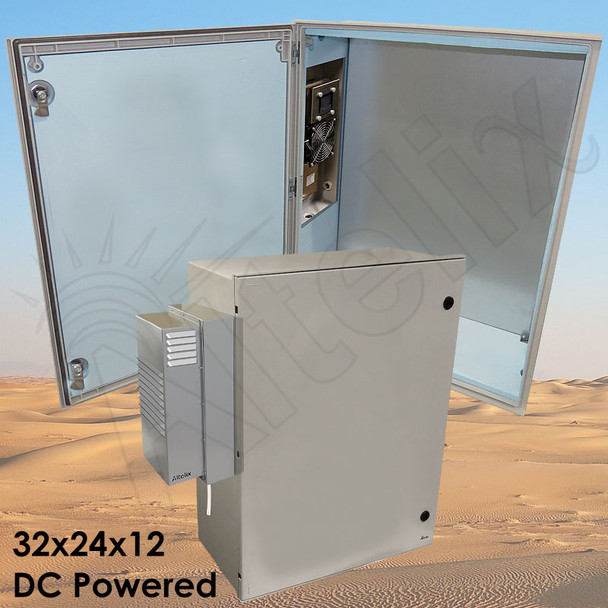

Altelix DC Powered Air Conditioned Enclosure with Heat - 32x24x12 Fiberglass FRP Weatherproof NEMA 4X Rated, 12VDC, 24VDC, 48VDC

The Altelix NFC322412D-AZ DC Powered Heated and Air Conditioned Weatherproof NEMA 4X Enclosure is ideal for protecting sensitive equipment from harsh environments and tampering. The digitally controlled heating and air conditioning system helps maintain optimal internal temperatures so internally mounted equipment can operate at peak performance. This enclosure is designed for both indoor and outdoor applications. Available in 12VDC, 24VDC or 48VDC models, this enclosure can be powered from DC solar and battery power sources.

Maintenance Free Heating and Air Conditioning System
The NFC322412D-AZ features a digitally controlled heating and air conditioning system. Mounted externally on the enclosure to maximize interior space, this system provides 800 BTU of cooling and 520W of heating. Operation of this system is done via a programmable digital temperature controller. Heat and air conditioning Turn-On/Turn-Off temperatures can be separately programmed as well as Under/Over temperature alarms. The entire system is housed in a rugged powder coated steel housing and is mounted to the side of the enclosure. An external drain on the Heat/AC unit is provided to direct any condensation to outside the enclosure.

Designed to be maintenance free, this AC/Heating system features no moving components (except for fan), no compressor, refrigerant or filters to be changed. The reliable solid state construction ensures a long operational life span.

Thermal Insulation
To help maintain internal temperatures, this enclosure features 0.50 inch (12.7mm) thick insulation attached to the interior of the enclosure.

Enclosure Construction and Features
This rugged NEMA 4X IP66 rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

Aluminum Equipment Mounting Plate
This configuration consists of the FRP NEMA enclosure with hinged door and a 0.10 inch (2.2 mm) thick aluminum plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting
Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. For pole mounting Altelix has available the optional NMHS-600-16 pole mount kit. This heavy-duty kit features (2) 14 gauge steel mounting brackets and (2) heavy-duty 19 gauge 304 stainless steel adjustable bands which can be used to mount to poles from 4.5" (114.3mm) to 16" (406.4mm) in diameter.

Cable Glands
The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

120VAC Models Available
The Altelix AZ series A/C enclosures are also available for 120VAC applications. Click Here to see all available 120VAC models.

Optional Lockable Latches
For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Customization
This enclosure is one of many standard models available. Our lineup includes enclosures specifically tailored for WiFi equipment, DIN Mount Industrial Controls, POTS Telephones, IP Phones, Device Charging Stations, Security & Safety Equipment, Building & Home Automation and More.

We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Model Number	NFC322412D12-AZ	NFC322412D4-AZ
Material	Fiberglass Reinforced Polyester	Fiberglass Reinforced Polyester
Color	Light Gray	Light Gray
A/C Unit Input Voltage	11-35VDC	36-54VDC
A/C Unit Power Consumption	12VDC @ 34A max. 24VDC@ 17A max.	48VDC @ 8.1A max.
Digital Controller Operational Temperature Range	-22°F (-30°C) to +140°F (+60°C)	-22°F (-30°C) to +140°F (+60°C)
Insulation Thickness	0.50 inch (12.7mm)	0.50 inch (12.7mm)
Insulation R-Value	2	2
Cooling Capacity	800 BTU @ 48V	800 BTU @ 48V
Heating Capacity	520W @ 48V	520W @ 48V
Exterior Dimensions (Height x Width x Depth)	31.5 x 23.6 x 11.8 Inches (802 x 600 x 300 mm)	31.5 x 23.6 x 11.8 Inches (802 x 600 x 300 mm)
Interior Dimensions* (Height x Width x Depth)	25.5 x 21.3 x 10.1 Inches (648 x 540 x 257 mm)	25.5 x 21.3 x 10.1 Inches (648 x 540 x 257 mm)
Equipment Plate Material	0.10 inch (2.5 mm) Aluminum	0.10 inch (2.5 mm) Aluminum
Equipment Plate Dimensions	21.3 x 29.5 In. (540 x 749 mm)	21.3 x 29.5 In. (540 x 749 mm)
Weight	128.5 lbs. (58.2 kg)	128.5 lbs. (58.2 kg)
Noise Level	65dB	65dB
Ratings	NEMA Type 4, 4X / IP66	NEMA Type 4, 4X / IP66
*Notes: 1) Interior dimensions represent maximum space available for equipment.
