Deploy Surveillance Camera Systems Quickly and Easily
The Altelix NEMA 4X Security Camera Cabinet provides a way to quickly and easily deploy three HIKVISION® network cameras. Rather than mounting each camera separately, the included HIKVISION® camera mounting brackets are installed onto the Altelix Security Camera Cabinet so only the cabinet itself needs to be mounted.
HIKVISION® Camera Mounting Brackets
Included with this model are (3) three HIKVISION® DS-1273ZJ-140 camera mounting brackets. These brackets get installed on either side of the cabinet. Cable glands mounted behind the brackets are provided for feeding camera cables into the enclosure. Compatible network cameras include:
- HIKVISION® DS-2CD2387G2-LSU/SL Fixed Turret Cameras
- HIKVISION® DS-2CC51xxP(N) Dome Cameras
As well as any HIKVISION® camera designed for use with the DS-1273ZJ-140.
PoE Switch
Installed inside this cabinet is the Altelix EE1000-DIN Gigabit 4-Port Switch. This simplifies wiring since only a single Ethernet cable from a PoE compatible NVR is needed. This switch then feeds each camera separately. Jumper cables to connect the cameras to the switch are included.
PoE Lightning Protectors
For added protection, (3) Altelix ES1000-DIN Gigabit PoE lightning protectors are provided. These lightning protectors are wired between the PoE switch and cameras using the included jumper cables. Altelix also recommends installing an additional PoE lightning protector near the NVR. This helps protect the NVR from lightning strikes on the cameras or Ethernet cable. This lightning protector is available in the accessories section when adding to the cart. It can also be purchased by clicking here: Altelix ES1000-DIN.
All Weather Construction
This rugged NEMA 4X cabinet is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.
Aluminum Equipment Plate
This model features an easy to drill, aluminum equipment mounting plate which can be used to install additional equipment.
Mounting

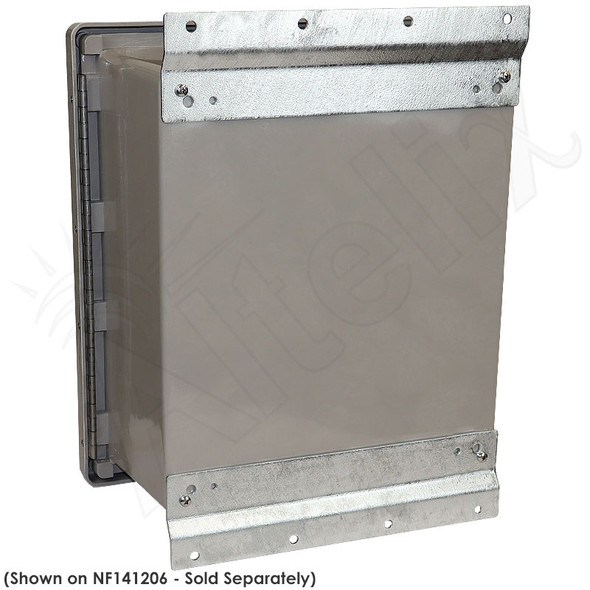

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.
Two Camera Configuration
This model is also available with (2) two HIKVISION® DS-1273ZJ-140 camera mounting brackets. For more information see: NF141206E1-C2
Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
HIKVISION® is a trademark or registered trademark of Hangzhou Hikvision Digital Technology Co., Ltd.
Technical Specifications
Cabinet Specifications | |
Material | Fiberglass Reinforced Polyester |
Color | Gray |
Outer Dimensions (Cabinet Only) | 15.7 x 13.8 x 6.5 Inches (401 x 352 x 165 mm) |
Inner Dimensions | 13.0 x 11.0 x 4.9 Inches (330 x 279 x 124 mm) |
Mounting Plate Material | 0.10 in (2.5 mm) Aluminum |
Weight | 16 lbs. (7.2 kg) |
Ratings | NEMA Type 4, 4X / IP66 |
Flame Rating | UL94-5V |
Industry Certifications | CE |
Camera Mounting Brackets | (3) HIKVISION® DS-1273ZJ-140 |
PoE Switch Specifications | |
RJ45 Ports | (1) PoE In, (3) PoE Out |
PoE Voltage | 44-57 VDC |
PoE Input Power | 30W Max. |
PoE Output Power | 24W Max., Average 8W Per Port |
Data Speed | 10/100/1000 Mbps |
PoE Protocol | IEEE 802.3at (30W), IEEE 802.3af (15.4W) |
PoE Pinouts | Pins 1/2 & 7/8 (-) Pins 3/6 & 4/5 (+) |
PoE Lightning Protector Specifications | |
Ethernet Ports | (2) Shielded RJ45 |
Nominal Operating Voltage (Un) | 48V |
Max. Continuous Operating Voltage (Uc) | 100V |
Data Rate | 10/100/1000Mbps |
PoE Compatibility | IEEE 802.3af/at |
Nominal Discharge Current (In) | 5KA |
Max. Discharge Current (Imax) | 10KA |
Ground Wire Strip Length | >0.25 in. (6-7mm) |
