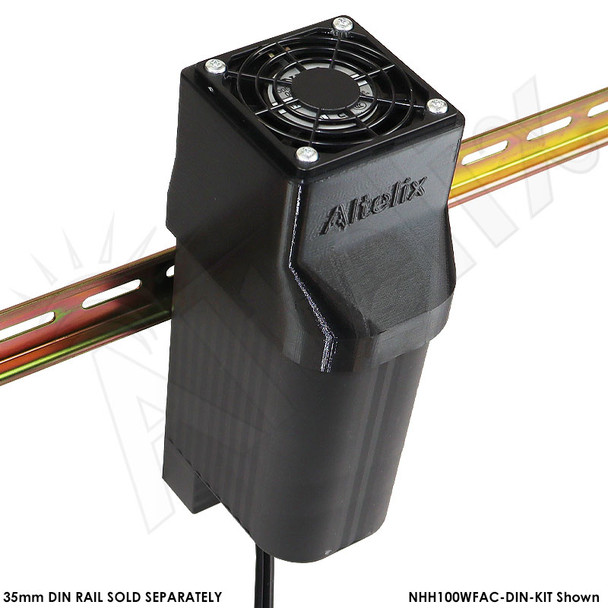

The Altelix DIN Rail Mountable Turbo Heater Kits provide a simple way to add heat to a NEMA enclosure or equipment cabinet.
Thermostat Controlled with Integral Fan
The Touch-Safe PTC resistor heating element generates a high air-current of warm air due to the design which supports natural convection which is multiplied by the integral booster fan. The included thermostat turns the heater on when the internal temperature reaches 41°F (5°C) and turns off when it rises to 59°F (15°C). These kits are available in either 50W or 100W. The integral turbo fan significantly increases air circulation for better heat distribution throughout the equipment space.
Easy to Install - No Wiring Required
Installing these heater kits is simple since no electrical wiring is required. Simply clip the heater onto a 35mm Top Hat DIN Rail (sold separately) and plug the pre-wired 2 foot power cord into a 120VAC power outlet.
Industrial Touch-Safe Heater Design
The industrial touch-safe design of this heater is designed to protect against serious burn injuries and prevent damage to surrounding sensitive equipment by reducing the temperature of the external surfaces, although the heater can get hot to the touch.
Also Available without Fan
Both the 50W and 100W models can be purchased without the fans. Click Here for more information.
Technical Specifications
| Model Number | NHH050WFAC-DIN-KIT | NHH100WFAC-DIN-KIT |
| Heater Power | 50W | 100W |
| Operating Voltage | 110-250 VAC/VDC | 110-250 VAC/VDC |
| Heating Element | PTC Resistor | PTC Resistor |
| Fan Type | 120VAC 60mm | 120VAC 60mm |
| Mounting | 35mm DIN Rail | 35mm DIN Rail |
| Mounting Position | Vertical | Vertical |
| Heater Turn-On Temperature | 41°F (5°C) ±9°F | 41°F (5°C) ±9°F |
| Heater Turn-Off Temperature | 59°F (15°C) ±9°F | 59°F (15°C) ±9°F |
| Power Cord Length | 2.5 Feet (762mm) | 2.5 Feet (762mm) |
| Dimensions | 2.4 x 7.5 x 3.4 in. (60 x 190.5 x 86 mm) | 2.4 x 9.0 x 3.4 in. (60 x 228.6 x 86 mm) |
| Weight | 1.26 lbs. (0.57 kg) | 1.61 lbs. (0.73 kg) |
For 35mm DIN Rail Kits for Altelix enclosures, click the ACCESSORIES and ADD-ONS button.
