Altelix Vented Weatherproof Enclosure for Ubiquiti UniFi® nanoHD Access Point

SKU:
NP14TNVM-UBQ-01
Availability:
Same Day Shipping
  • Altelix Vented Weatherproof Enclosure for Ubiquiti UniFi® nanoHD Access Point
  • Available Colors
  • Altelix Vented Weatherproof Enclosure for Ubiquiti UniFi® nanoHD Access Point
  • Altelix Vented Weatherproof Enclosure for Ubiquiti UniFi® nanoHD Access Point
  • Altelix Vented Weatherproof Enclosure for Ubiquiti UniFi® nanoHD Access Point
  • Altelix Vented Weatherproof Enclosure for Ubiquiti UniFi® nanoHD Access Point
  • Altelix Vented Weatherproof Enclosure for Ubiquiti UniFi® nanoHD Access Point
  • Accessory Kit
  • Cable Gland
  • Scale Reference
Your Price: $163.99

Get simple modifications in only 5 days! Click to learn more.

For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Designed to fit the Ubiquiti Unifi® nanoHD Access Point
  • Two 3" vents with rain shields and screens
  • ABS + Polycarbonate Enclosure
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • RF transparent design will not affect wireless signal range or coverage pattern
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Access Point Removal Tool, Wall Mount Hardware and Cable Grommets
Applications
  • Outdoor Wireless Network Installations
  • Protection of Access Point from Theft or Damage
  • Concealment of Equipment
  • Deployment of Hospitality Wireless Networks
  • Retail and Commercial Wireless Networks
  • PoE Installations

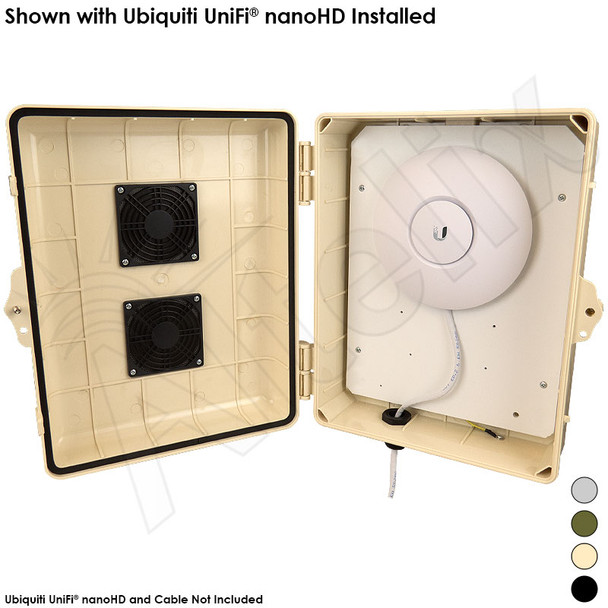

The Altelix Vented nanoHD Enclosure is a weatherproof enclosure designed to provide indoor or outdoor protection for the Ubiquiti Unifi® nanoHD access point. This non-powered enclosure is ideal for installations powering the Ubiquiti Unifi® nanoHD via PoE only.

Install Your nanoHD Access Point Securely Outdoors
This sleek enclosure is molded from weatherproof UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS, for extreme durability. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. The wall mounting screws are concealed securely within the enclosure to prevent tampering. There is also a provision for a padlock. Two 3" inch air vents with rain shields and screens provide ventilation for the Ubiquiti Unifi® nanoHD. This enclosure meets or exceeds NEMA 3R, 3RX and IP24.

Easy Setup
The equipment mounting plate of the NP14VM-UBQ-01 is pre-drilled to except the mounting bracket that comes with the Ubiquiti UniFi® nanoHD. Simply attach the mounting bracket to the plate and then install the access point. Once the nanoHD is securely mounted inside the enclosure, a special cable gland on the enclosure will allow a terminated Ethernet cable to be connected to the access point.

RF Transparent Design
The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.

Mounting
The NP14VM-UBQ-01 enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for mounting on poles or fence posts.

Additional Enclosures for Ubiquiti® Wireless Equipment
In addition to this enclosure, Altelix has enclosure for a wide range of Ubiquiti® wireless access points and extenders. Click Here to view all available models.

Ubiquiti UniFi® is a trademark or registered trademark of Ubiquiti Networks, Inc.

Technical Specifications

Material PC+ABS Polycarbonate / ABS Blend
Available Colors Gray, Black, Light Ivory, OD Green
Outer Dimensions 13.4 x 11.5 x 6.7 Inches
(340 x 293 x 159 mm)
Inner Dimensions 12.0 x 8.0 x 3.8 Inches
(304 x 203 x 97 mm)
Mounting Plate Material 0.25 In. (6.4 mm) PVC
Mounting Plate Dimensions 9.0 x 11.7 In. (230 x 298 mm)
Weight 4.0 lbs. (1.7 kg)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating Meets UL94-V0
Compatible Ubiquiti® Model Ubiquiti Unifi® nanoHD




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
