The Altelix Vented U6-Lite Enclosure is a weatherproof enclosure designed to provide indoor or outdoor protection for the Ubiquiti Unifi® U6-Lite access point. This non-powered enclosure is ideal for installations powering the Ubiquiti Unifi® U6-Lite via PoE only.
Install Your U6-Lite Access Point Securely Outdoors
This sleek enclosure is molded from weatherproof UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS, for extreme durability. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. The wall mounting screws are concealed securely within the enclosure to prevent tampering. There is also a provision for a padlock. Two 3" inch air vents with rain shields and screens provide ventilation for the Ubiquiti Unifi® U6-Lite. This enclosure meets or exceeds NEMA 3R, 3RX and IP24.
Easy Setup
The equipment mounting plate of the NP14VM-UBQ-03 is pre-drilled to except the mounting bracket that comes with the Ubiquiti UniFi® U6-Lite. Simply attach the mounting bracket to the plate and then install the access point. Once the U6-Lite is securely mounted inside the enclosure, a special cable gland on the enclosure will allow a terminated Ethernet cable to be connected to the access point.
RF Transparent Design
The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.
Mounting
The NP14VM-UBQ-03 enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for mounting on poles or fence posts.
Additional Enclosures for Ubiquiti® Wireless Equipment
In addition to this enclosure, Altelix has enclosure for a wide range of Ubiquiti® wireless access points and extenders. Click Here to view all available models.
Ubiquiti UniFi® is a trademark or registered trademark of Ubiquiti Networks, Inc.
Technical Specifications
| Material | PC+ABS Polycarbonate / ABS Blend |

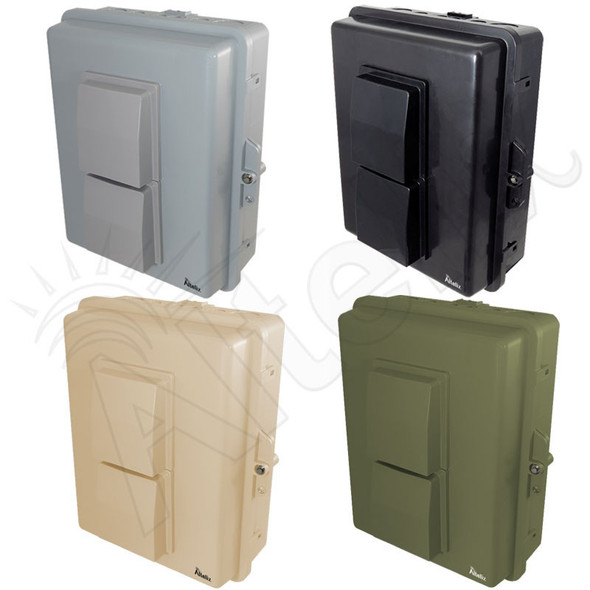

| Available Colors | Gray, Black, Light Ivory, OD Green |
| Outer Dimensions | 13.4 x 11.5 x 6.7 Inches (340 x 293 x 159 mm) |
| Inner Dimensions | 12.0 x 8.0 x 3.8 Inches (304 x 203 x 97 mm) |
| Mounting Plate Material | 0.25 In. (6.4 mm) PVC |
| Mounting Plate Dimensions | 9.0 x 11.7 In. (230 x 298 mm) |
| Weight | 4.0 lbs. (1.7 kg) |
| Ratings | NEMA Type 3R, 3RX / IP24 |
| Flame Rating | Meets UL94-V0 |
| Compatible Ubiquiti® Model | Ubiquiti Unifi® U6-Lite |
 | NEMA Ratings and IP Equivalency Chart |
