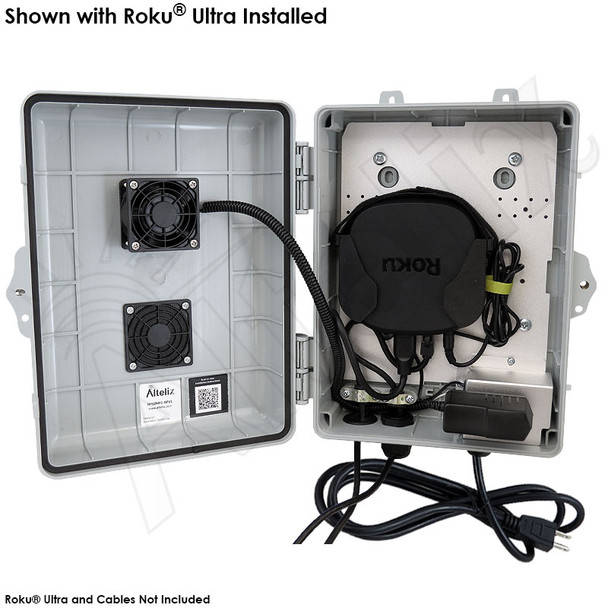

Altelix Weatherproof Enclosure for Roku® Ultra with Cooling Fan, 120VAC Outlet and Power Cord

Protect Your Roku® Ultra

The Altelix NP12VFA1C-RKU1 is a weatherproof fan-cooled enclosure designed to provide indoor and outdoor protection for the Roku® Ultra streaming player.

Install Your Roku® Ultra Securely Outdoors
This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.

Roku® Ultra Mount
The NP12VFA1C-RKU1 features a mounting cradle specifically designed for the Roku® Ultra (Model 4802) and Roku® Ultra LT (Model 4801) streaming player. Installation is easy, simply slide the Roku® Ultra player into the mounting cradle. For installations subject to vibrations, an optional hook and loop strap is provided to secure the Roku® Ultra within the mounting cradle. The mounting cradle is designed so that it will not interfere with any of the ports on the Roku® Ultra player such as power, Ethernet and HDMI.

Plug and Play Setup
The NP12VFA1C-RKU1 enclosure provides easy plug-n-play installation. Once the Roku® Ultra player is securely mounted inside the enclosure, connect its power supply to the internal 120VAC power outlet. A cable gland and cable grommets on the enclosure allow cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into an outdoor outlet and you are up and running.

Cooling Fan Ventilation
To help keep your Roku® Ultra running cool, the NP12VFA1C-ARKU1 features two 2¼" inch air vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require use of the AC outlet. Rain shrouds on the front door keep rain water from entering the enclosure.

Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

Mounting
The external mounting feet on the NP12VFA1C-RKU1 allows it to be easily wall mounted with the included hardware. For added security, mounting the enclosure using the internal mount feet can prevent the enclosure from being removed when locked. A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it to be mounted to poles and fence posts up to 9.5 inches in diameter.

Roku® is a trademark or registered trademark of Roku, Inc.

Technical Specifications

Material	Polycarbonate + ABS
Available Colors	Gray, Light Ivory, OD Green
Voltage	120VAC
Max Load	10A @ 120VAC
Cooling Fan Turn-On Temperature	100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature	79°F (26°C) ±9°F
Outer Dimensions (Height x Width x Depth)	13.1 x 10.2 x 5.9 Inches (334 x 259 x 151 mm)
Inner Dimensions* (Height x Width x Depth)	8.5 x 7.5 x 2.7 Inches (216 x 190 x 68 mm)
Mounting Plate Material	0.06 in. (1.5mm) Aluminum
Weight	3.7 lbs. (1.7 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	Meets UL94-V0
Compatible Roku® Models	Roku® Ultra (Model 4802) Roku® Ultra LT (Model 4801)

*Interior dimensions represent maximum space available for equipment.

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
