Altelix Weatherproof Vented Enclosure for Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem with 120VAC Outlets and Power Cord

SKU:
NP14VA1C-ARS2
Availability:
Same Day Shipping
On Sale
NEW!
  • Altelix Weatherproof Vented Enclosure  for Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem with 120VAC Outlets and Power Cord
  • Available Colors
  • Altelix Weatherproof Vented Enclosure  for Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem with 120VAC Outlets and Power Cord
  • Altelix Weatherproof Vented Enclosure  for Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem with 120VAC Outlets and Power Cord
  • Altelix Weatherproof Vented Enclosure  for Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem with 120VAC Outlets and Power Cord
  • Altelix Weatherproof Vented Enclosure  for Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem with 120VAC Outlets and Power Cord
  • Altelix Weatherproof Vented Enclosure  for Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem with 120VAC Outlets and Power Cord
  • Altelix Weatherproof Vented Enclosure  for Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem with 120VAC Outlets and Power Cord
  • Accessory Kit
  • Scale Reference
Now: $159.99
List Price: $199.99
For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Designed to fit Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem
  • Plug-and-Play Design, Easy to Install
  • Dual 3" Vents with Rain Shields to Expel Heat
  • Features a RF Transparent PVC Non-Metallic Equipment Mounting Plate
  • Pre-Wired 120VAC Power Outlet with 5 foot Power Cord
  • Includes Wall Mounting Hardware
  • NEMA Type 3R, 3RX / IP24 Rated
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS Construction
  • Gasketed Lid Featuring a Tamper-Proof Locking Screw with Key and Provision for Padlock
  • Optional Pole Mount Kit Available
Applications
  • Protection of the Arris® SURFboard® Cable Modem from Theft or Damage
  • For Use with Arris® SURFboard® S33 DOCSIS® 3.1 Cable Modem
  • Provide Cable Television and Internet Services to Outdoor Locations
  • Concealment of Equipment


Provide Television and Internet Cable Services to Outdoor Locations

The Altelix Cable Modem Enclosure is a vented weatherproof enclosure designed to provide added security from  vandalism and protection from harsh environments, while allowing ventilation for Arris® S33 SURFboard® cable modem. It features two 3" inch air vents with rain shields and screens.

Rugged Polycarbonate + ABS Construction
This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.

Plug and Play Setup
The Altelix Cable Modem enclosure provides easy plug-n-play installation. Once the enclosure is mounted, insert the Arris® S33 SURFboard® cable modem to the internal mounting bracket. Once seated on the mounting bracket, an optional hook-and-loop strap can be used for additional security. Plug the Arris® SURFboard power supply into the pre-wired 120VAC power outlet then plug the enclosure's 5 foot power cord into a 120VAC power outlet and you are up and running. Cable grommets on the enclosure allow coax and Ethernet cables to be connected to modem. This enclosure is compatible with the following Arris® SURFboard® modem:

  • Arris® S33 SURFboard® DOCSIS® 3.1 Cable Modem

RF Transparent Design
The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the WiFi signal range or coverage pattern of Arris® SURFboard WiFi cable modem models.

Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

Arris®, SURFboard® and DOCSIS® are trademarks or registered trademarks of Arris Solutions, Inc.

Technical Specifications

Material Polycarbonate + ABS

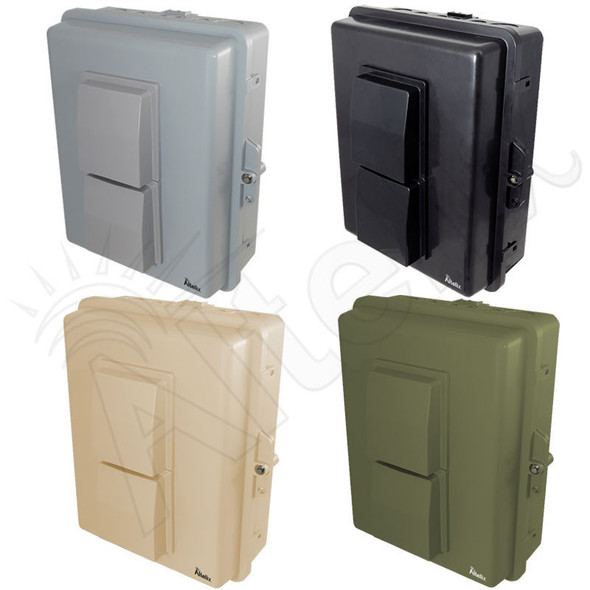

Available Colors Gray, Black, Light Ivory, OD Green
Voltage 120VAC
Max Load 10A @ 120VAC
Outer Dimensions
(Height x Width x Depth)
13.4 x 11.5 x 6.3 Inches
(340 x 293 x 160 mm)
Inner Dimensions
(Height x Width x Depth)
9.5 x 8.0 x 3.8 Inches
(241 x 203 x 98 mm)
Mounting Plate Material 0.25 in. (6.4mm) PVC
Weight 4.9 lbs. (2.2 kg)
Power Cord Length 5 Feet (1.5m)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating Meets UL94-V0
Compatible Arris® SURFboard® Model S33 3.1 Cable Modem




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
