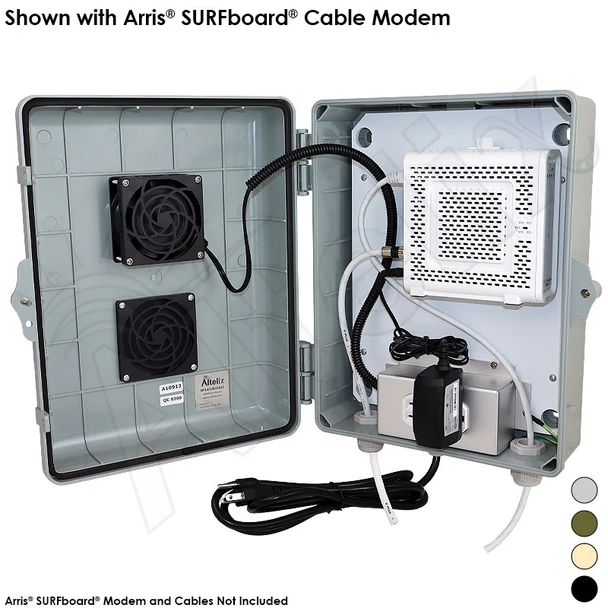

Altelix Weatherproof Vented Enclosure for Arris® SURFboard® SB8200, SB6190 & SBG10 Cable Modems with Cooling Fan, 120VAC Outlets and Power Cord

Provide Television and Internet Cable Services to Outdoor Locations

The Altelix Cable Modem Enclosure is a vented fan cooled weatherproof enclosure designed to provide added security from  vandalism and protection from harsh environments for Arris® SURFboard® modems.

Rugged Polycarbonate + ABS Construction
This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.

Cooling Fan Ventilation
This enclosure features dual 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure. Dual fans are also available by request.

Plug and Play Setup
The Altelix Cable Modem enclosure provides easy plug-n-play installation. Once the enclosure is mounted, attach the Arris® SURFboard® cable modem to the internal mounting bracket. Once seated on the mounting bracket, a thumb clip keeps it securely in place. Plug the Arris® SURFboard power supply into the pre-wired 120VAC power outlet then plug the enclosure's 5 foot power cord into a 120VAC power outlet and you are up and running. Cable grommets on the enclosure allow coax and Ethernet cables to be connected to modem. This enclosure is compatible with the following Arris® SURFboard® modems:

• Arris® SB8200 SURFboard® DOCSIS® 3.1 Cable Modem
• Arris® SB6190 SURFboard® DOCSIS® 3.0 Cable Modem
• Arris® SBG10 SURFboard® DOCSIS® 3.0 Cable Modem & Wi-Fi® Router

RF Transparent Design
The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the WiFi signal range or coverage pattern of Arris® SURFboard WiFi cable modem models.

Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

Arris®, SURFboard® and DOCSIS® are trademarks or registered trademarks of Arris Solutions, Inc.

Technical Specifications

Material	Polycarbonate + ABS
Available Colors	Gray, Black, Light Ivory, OD Green
Voltage	120VAC
Max Load	10A @ 120VAC
Cooling Fan Turn-On Temperature	100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature	79°F (26°C) ±9°F
Outer Dimensions (Height x Width x Depth)	13.4 x 11.5 x 6.3 Inches (340 x 293 x 160 mm)
Inner Dimensions (Height x Width x Depth)	9.5 x 8.0 x 3.8 Inches (241 x 203 x 98 mm)
Mounting Plate Material	0.25 in. (6.4mm) PVC
Weight	5.6 lbs. (2.5 kg)
Power Cord Length	5 Feet (1.5m)
Ratings	NEMA Type 3R, 3RX / IP24
Flame Rating	Meets UL94-V0
Compatible Arris® SURFboard® Models	SB8200 3.1 Cable Modem SB6190 3.0 Cable Modem SBG10 3.0 Cable Modem & WiFi Router

NEMA Ratings and IP Equivalency Chart This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
