Weatherproof Extreme Durability for Pole and Post Mounting

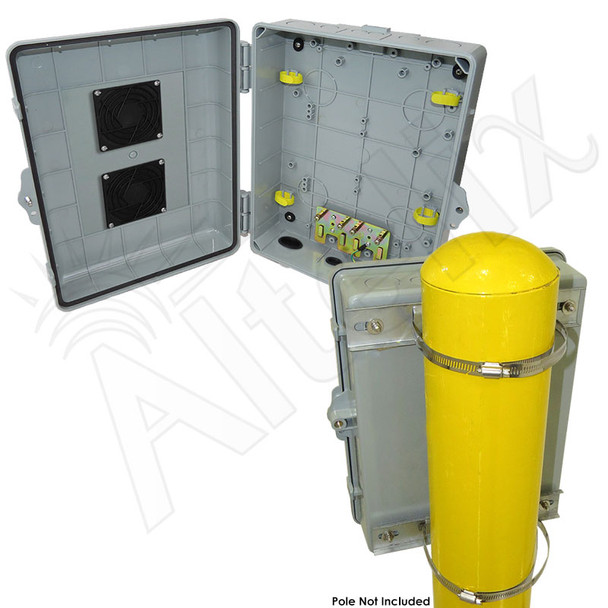

The Altelix NP141105V-PKIT is an industrial quality general purpose vented weatherproof utility box designed for mounting to poles and posts. It features two 3 inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting small devices from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.
Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. Meets or exceeds NEMA Type 3, 3X and IEC IP55.
Mounting
The included Pole Mount Kit features (2) galvanized steel brackets and two stainless steel adjustable bands that accommodate poles up to 7.6 inches in diameter. For larger diameter poles, such as utility poles, longer bands can be used.
Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains zip ties, wire management loops, grounding plate and ground wire, door locking key and more.
Cable Glands
The enclosure includes (2) unique cable glands with a closed inner seal. They can be installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Technical Specifications
| Enclosure Material | Polycarbonate + ABS |
| Available Colors | Gray, Black, Light Ivory, OD Green |
| Outer Dimensions (Height x Width x Depth) | 13.4 x 11.6 x 6.3 Inches (340 x 294 x 161 mm) |
| Inner Dimensions* (Height x Width x Depth) | 12.0 x 8.0 x 4.0 Inches (305 x 203 x 102 mm) |
| Weight (Enclosure & Pole Mount) | 4.2 lbs. (1.9 kg) |
| Ratings | NEMA Type 3R, 3RX / IP24 |
| Flame Rating | Meets UL94-V0 |
| Knockout Sizes (Diameter) | (4) 0.62 in. (16 mm) (4) 0.78 in. (20 mm) (4) 1.30 in. (33 mm) |
| *Interior dimensions represent maximum space available for equipment. |
 | NEMA Ratings and IP Equivalency Chart |
Downloads
Availability:
Product Note:
This enclosure is also available in our new 14x11x7 size. These enclosures feature a deeper size for more equipment space as well as multiple mounting options and stainless steel latches. They are currently available at the same cost as our 14x11x5 enclosures! Click Here to see our complete NP141107 enclosure line.
