The Altelix NHF120A1-KIT is the all-in-one solution for adding thermostat controlled cooling fans to existing equipment racks and enclosures.
No Wiring Needed

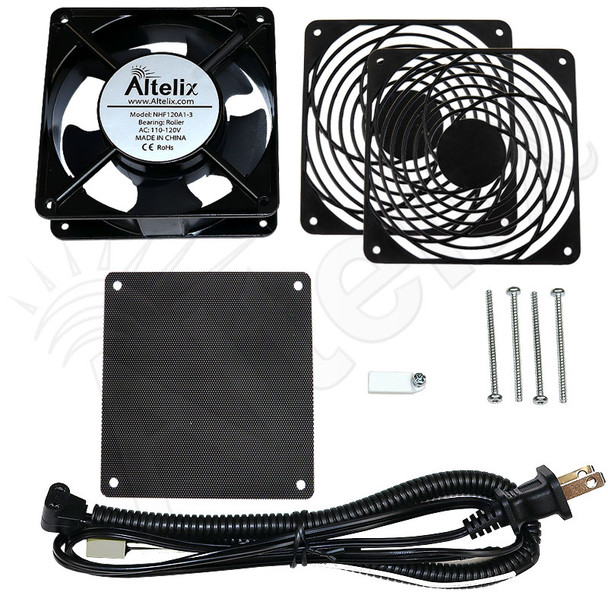

The power cord included with this kit features a pre-wired thermostat as well as a 120VAC power plug so no additional wiring is needed. Simply plug the power cord into the fan and then into a free 120VAC outlet. A clip is provided to attach the thermostat to a equipment mounting plate or other surface. This kit includes:
- (1) 120x120x38mm 120VAC cooling fan
- (1) Power cord with fan power plug, 120VAC power plug and pre-wired thermostat
- (1) Thermostat mounting clip
- (2) Finger guards
- (1) Fan screen
- (4) #6 Torx head mounting screws
Direct Replacement for Altelix Enclosures
This 120VAC cooling fan kit is also a direct replacement for the stock cooling fans included with the following enclosures as well as retrofit vented enclosures without cooling fans:
- NF141206 series
- NF141208 series
- NF141210 series
- NF162012 series
- NF201612 series
- NFC161208 series
- NFC161608 series
- NFC201608 series
- NFC241609 series
- NFC242009 series
- NFC322412 series
This kit is also available with a 80x80x25mm cooling fan. See NHF080A1-KIT.
Technical Specifications
| Voltage | 110-120VAC |
| Wattage | 31.2W |
| CFM | 58 |
| Dimensions (LxWxD) | 120 x 120 x 38mm |
| Thermostat Specifications | |
| Cooling Fan Turn-On Temperature | 100°F (38°C) ±6°F |
| Cooling Fan Turn-Off Temperature | 79°F (26°C) ±9°F |
