Vented Aluminum Access Panel for NS161212 & NX161212 Enclosures

SKU:
NHM12A-V
Availability:
Usually Ships in 1 to 2 Business Days
  • Vented Aluminum Access Panel for NS161212 and NX161212 Enclosures
  • Vented Aluminum Access Panel for NS161212 and NX161212 Enclosures
  • Vented Aluminum Access Panel for NS161212 and NX161212 Enclosures
  • Cable Gland
Your Price: $24.99

Get simple modifications in only 3-5 days! Click to learn more.

For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

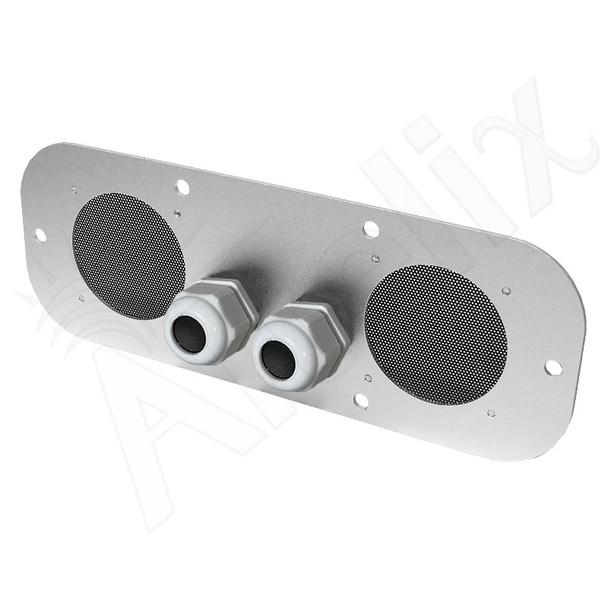

The Altelix NHM12A-V Vented Aluminum Access Panel is designed for use with the Altelix NS161212 and NX161212 Series steel enclosures. This panel is a direct replacement for the steel access panel included with the NS/NX enclosures. It features (2) 3" vents with screens which are removable for cleaning. In addition, (2) cable glands are provided for any wiring requirements.

The NHM10A-V is constructed from 0.10" (2.5mm) thick aluminum and features a textured finish.



Technical Specifications

Access Panel Material Aluminum
Access Panel Thickness 0.10 in. (2.5 mm)
Hole Diameter for Cable Gland 0.875 in. (22.2 mm)
Cable Gland - Cable Diameter Range* 0.1" to 0.3" (2.5 to 7.6mm)
Max. Connector Size That Can Pass Through Cable Gland 0.5" (12.7mm) Wide
*Note:
For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland.
