Extreme Protection Built to Last

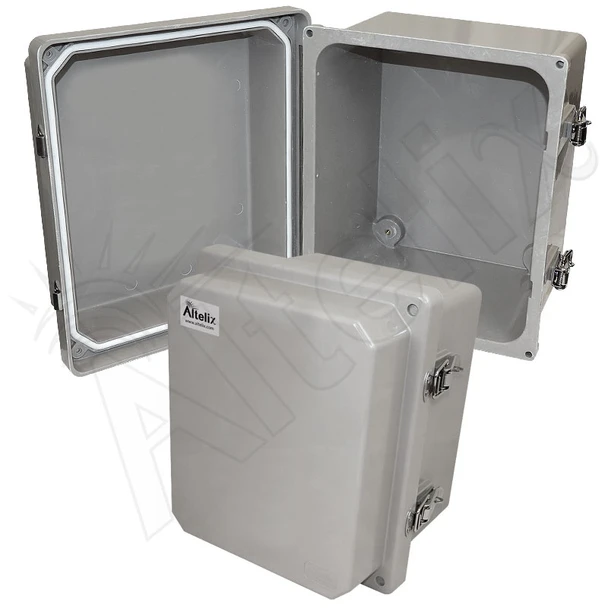

The Altelix NF100808 NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.
This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.
Increased Interior Space
The NF100808 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF100806 series enclosures. With the generous size of this enclosure and extended lid the NF100808 can accommodate a wide range of equipment.
Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available (see accessories above).
Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
Technical Specifications
Material | Fiberglass Reinforced Polyester |
Color | Gray |
Outer Dimensions | 11.7 x 9.8 x 8.7 In. (297 x 250 x 223 mm) |
Inner Dimensions | 9.7 x 7.9 x 8.0 In. (247 x 200 x 206 mm) |
Weight | 6.3 lbs. (2.8 kg) |
Ratings | NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66 |
Industry Certifications | CE |
NEMA Ratings and IP Equivalency Chart |
