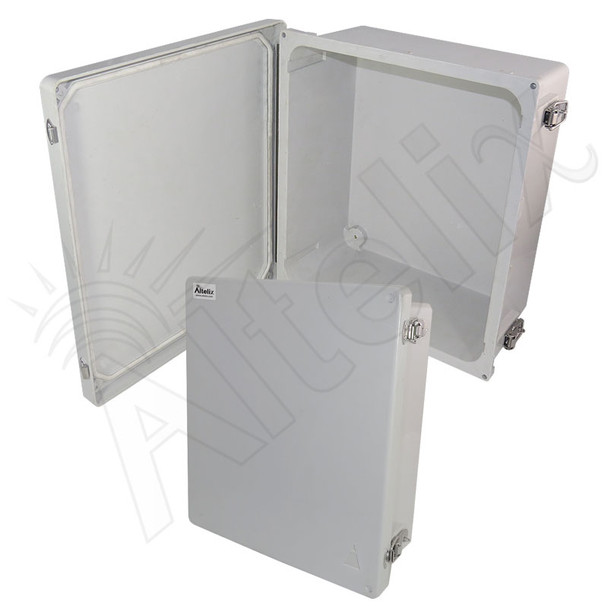

Altelix 14x12x6 Fiberglass NEMA 4X Weatherproof Enclosure with Quick Release Latches

SKU:
NF141206
Availability:
Same Day Shipping
  • Altelix 14x12x6 Fiberglass FRP Weatherproof NEMA 4x Enclosure
  • Altelix 14x12x6 Fiberglass FRP Weatherproof NEMA 4x Enclosure
  • Altelix 14x12x6 Fiberglass FRP Weatherproof NEMA 4x Enclosure
  • Altelix 14x12x6 Fiberglass FRP Weatherproof NEMA 4x Enclosure
  • Altelix 14x12x6 Fiberglass FRP Weatherproof NEMA 4x Enclosure
  • Altelix 14x12x6 Fiberglass FRP Weatherproof NEMA 4x Enclosure
Your Price: $84.99
  • Pole Mount / Flange Mount Kit for Altelix NF141206, NF141208, NS161208, NS161208 & NFC161212 Series NEMA Enclosures
  • Stainless Steel Pole Mount / Flange Mount Kit for Altelix NF141206, NF141208, NFC161208, NS161208 & NS161212 Series NEMA Enclosures
  • Aluminum Equipment Mounting Plate for Altelix NF141206 & NF141208 Series Enclosures
  • Blank Non-Metallic Equipment Mounting Plate for NF141206 & NF141208 Series Enclosures
For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Water Resistant JIC Enclosure Design with Gasketed Lid
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Raised Bosses and Brass Inserts for Plate Mounting
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Includes Stainless Steel Mounting Feet
  • RF Transparent and Non-Conductive
  • Pole Mounting Kit Available
Applications
  • Rapid Deployment
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Solar Equipment Enclosure
  • Outdoor Use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure



Extreme Protection Built to Last

The Altelix NF141206 NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material Fiberglass Reinforced Polyester
Color Gray
Outer Dimensions 15.75 x 13.83 x 6.54 Inches
(401 x 352 x 164 mm)
Inner Dimensions 13.87 x 11.97 x 6.2 Inches
(352 x 304 x 157 mm)
Weight 8.8 lbs. (4.0 kg)
Ratings NEMA Type 4, 4X / IP66
Flame Rating UL94-5V




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
