Altelix 14x11x5 Polycarbonate + ABS Vented RF Transparent Outdoor WiFi Enclosure with No-Drill PVC Equipment Mounting Plate, 120 VAC Outlets & Power Cord

SKU:
NP141105VMA1C
Availability:
Usually Ships in 1 to 2 Business Days
  • Altelix 14x11x5 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord

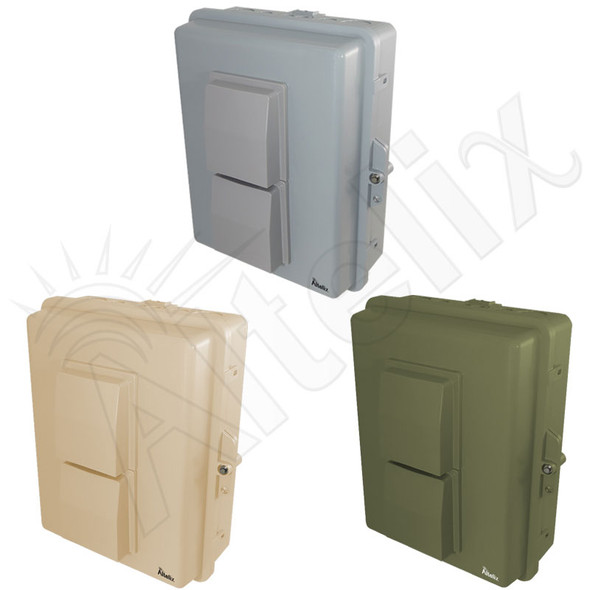

  • Available Colors
  • Altelix 14x11x5 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • No-Drill PVC Equipment Mounting Plate
  • Altelix 14x11x5 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 14x11x5 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 14x11x5 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 14x11x5 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Altelix 14x11x5 Polycarbonate + ABS Vented Indoor / Outdoor RF Transparent Enclosure with PVC Non-Metallic Equipment Mounting Plate, 120 VAC Outlets & Power Cord
  • Accessory Kit
  • Black PVC Equipment Mounting Plate Include with Black Enclosure
  • Scale Reference
Your Price: $211.99

Get simple modifications in only 3-5 days! Click to learn more.

For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • Dual 3" Vents with Rain Shields to Expel Heat
  • Features a No-Drill PVC Non-Metallic Equipment Mounting Plate – Mount your equipment securely without the need for drilling!
  • Black Enclosures Now Include a Black PVC Equipment Mounting Plate
  • ABS + Polycarbonate Enclosure
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • (2) 120VAC Outlets
  • Pre-wired 5 foot power cord
  • NEMA Type 3R, 3RX / IP24 Rated
  • Available in Gray, Black, Light Ivory and OD Green
  • Includes Wall Mount Hardware and Cable Grommets
Applications
  • Indoor / Outdoor WiFi Access Points and Routers
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Concealment of Electronic Equipment



The Altelix NP141105VMA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The non-metallic equipment mounting plate features two pre-wired 120VAC power outlets for your equipment. A cable grommet on the enclosure allows cables to be connected to internal devices. Knock-outs are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Ventilation
The NP141105VMA1C features two 3" vents. Rain shrouds on the front door keep rain water from entering the enclosure.

No-Drill Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design
The NP141105VMA1C is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless points on the market.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material PC+ABS Polycarbonate / ABS Blend
Available Colors Gray, Black, Light Ivory, OD Green
Voltage 120VAC
Max Load 10A @ 120VAC
Outer Dimensions
(Height x Width x Depth)
13.4 x 11.5 x 6.3 Inches
(340 x 293 x 160 mm)
Inner Dimensions*
(Height x Width x Depth)
9.5 x 8.0 x 3.7 Inches
(241 x 203 x 94 mm)
Mounting Plate Material 0.25 in (6.4 mm) PVC
Mounting Plate Dimensions 11.7 x 9.0 in. (298 x 230 mm)
Weight 4.7 lbs. (2.1 kg)
Power Cord Length 5 Feet (1.5m)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 0.78 in. (20 mm)
(4) 1.30 in. (33 mm)
*Notes:
1) Interior dimensions represent maximum space available for equipment.




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.



Need a pole mount kit, an extra set of enclosure keys or something else? Click on ADD TO CART below to see all the available accessories for this enclosure.
