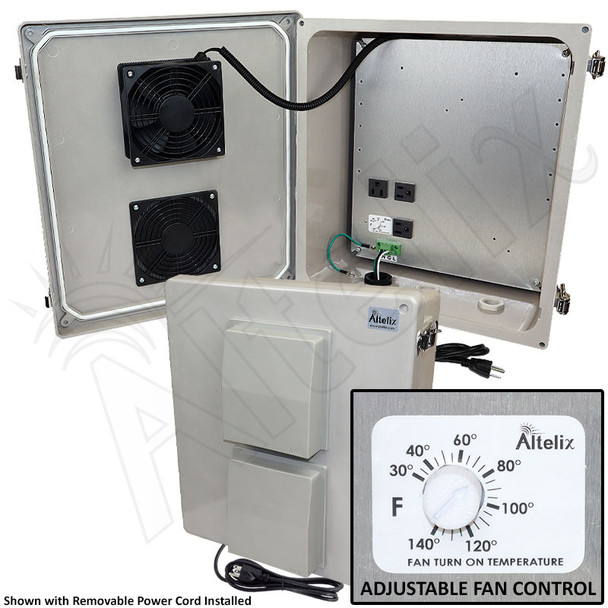

Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan, 120 VAC Outlets & Power Cord

SKU:
NF141206VFA1C
Availability:
Not available for online purchase. Please contact Altelix directly to purchase this enclosure.
  • Altelix 14x12x6 Fiberglass Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets and Power Cord
  • Altelix 14x12x6 Fiberglass Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets and Power Cord
  • Altelix 14x12x6 Fiberglass Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets and Power Cord
  • Altelix 14x12x6 Fiberglass Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets and Power Cord
  • Altelix 14x12x6 Fiberglass Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets and Power Cord
  • Altelix 14x12x6 Fiberglass Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets and Power Cord
  • Altelix 14x12x6 Fiberglass Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets and Power Cord
  • Altelix 14x12x6 Fiberglass Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets and Power Cord
  • Altelix 14x12x6 Fiberglass Vented Fan Cooled Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets and Power Cord
Your Price: $259.99
  • Pole Mount / Flange Mount Kit for Altelix NF141206, NF141208, NS161208, NS161208 & NFC161212 Series NEMA Enclosures
  • Stainless Steel Pole Mount / Flange Mount Kit for Altelix NF141206, NF141208, NFC161208, NS161208 & NS161212 Series NEMA Enclosures
  • 35mm Top Hat DIN Rail Kit for NF141206, NF141208 & NP171406 Series Enclosures
For customization and volume pricing inquiries please Click Here to email us at sales@altelix.com

Description

Features
  • No Electrical Wiring Required
  • Thermostat Controlled Cooling Fan
  • Two (2) 4" Vents with Rain Shields and Screens
  • (4) Pre-Wired 120VAC Outlets
  • Removable 120VAC Terminal Block
  • Aluminum Equipment Mounting Plate
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available
  • Proudly Made Here in the USA with Global Materials
Applications
  • Rapid Deployment
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure
  • Battery and Charger Box


Fan Cooled Vented Enclosure with Plug and Play Power for Rapid Deployment

The Altelix NF141206VFA1C Fan Cooled Vented NEMA Enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets for your equipment.

Get your project up and running quickly
and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Fan Cooling with Thermostat Control
This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all 4 power outlets available for installed equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel ( NMKS-300-08) and stainless steel (NMKX-300-08).

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Technical Specifications

Material Fiberglass Reinforced Polyester
Color Gray
Voltage 120VAC
Max Load 10A @ 120VAC
Cooling Fan Turn-On Temperature 100°F (38°C)
Cooling Fan Turn-Off Temperature 79°F (26°C)
Outer Dimensions 15.7 x 13.8 x 6.5 Inches
(401 x 352 x 164 mm)
Inner Dimensions 13.87 x 11.97 x 6.2 Inches
(352 x 304 x 154 mm)
Mounting Plate Material 0.10 in (2.5 mm) Aluminum
Mounting Plate Dimensions 10.9 x 12.8 in. (276 x 324 mm)
Weight 12.0 lbs. (5.4 kg)
Power Cord Length 5 Feet (1.5m)
Terminal Block Wire Range 12-18 AWG
Terminal Block Wire Strip Length 6-7mm
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating UL94-5V




NEMA Ratings and IP Equivalency Chart
This chart provides the different NEMA ratings and their definitions as well as the IP equivalents and definitions.
